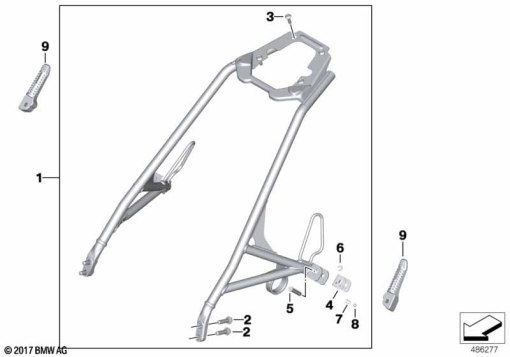

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77 25 8 394 216 | SET: SET PASSENGER FRAME | - | |
| - | 77 11 8 564 693 | HP SPORTS MUFFLER | - | |
| 2 | 07 12 9 907 381 | FILLISTER-HEAD SCREW - M8X30-8.8-ZNNIV | - | |
| 3 | 07 12 9 907 402 | FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV | - | |
| 4 | 46 71 7 674 588 | STOP PLATE | - | |
| 5 | 46 71 7 675 691 | PIN - D=8MM/ L=37,5MM | - | |
| 6 | 07 11 9 901 545 | SECURING CLIP | - | |
07 11 9 909 941 | CIRCLIPAlternative for position 6 | - | ||
07 11 9 909 941 | CIRCLIPAlternative for position 6 | - | ||
| 7 | 46 71 8 392 689 | COMPRESSION SPRING | - | |
| 8 | 07 11 9 905 643 | BALL - 6,35MM | - | |
| 9 | 46 71 7 708 633 | FOOTREST, REAR LEFT | - | |
46 71 7 708 634 | FOOTREST, REAR RIGHTAlternative for position 9 | - |
