R nineT Racer (K32) | Accessories

OPTION 719

Diagram #77_1193 | 18 parts

100%

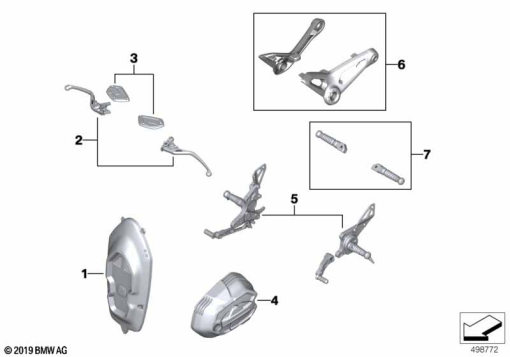

R nineT Racer (K32) OPTION 719 exploded view parts diagram

Parts List (18)

#Part NumberDescriptionQty
1
77 12 2 463 359
SET: BELT COVER MILLED - CLASSIC-
77 12 2 463 360
SET: BELT COVER MILLED - STORMAlternative for position 1-
77 12 2 463 361
SET: BELT COVER MILLED - CLUB SPORTAlternative for position 1-
2
77 23 2 463 362
SET: HAND LEVER, MILLED - CLASSIC-
77 23 2 463 365
SET: HAND LEVER, MILLED - STORMAlternative for position 2-
77 23 2 463 366
SET: HAND LEVER, MILLED - CLUB SPORTAlternative for position 2-
4
77 12 2 463 356
SET: CYLINDER HEAD COVERS - CLASSIC-
77 12 2 463 357
SET: CYLINDER HEAD COVERS - STORMAlternative for position 4-
77 12 2 463 358
SET: CYLINDER HEAD COVERS - CLUB SPORTAlternative for position 4-
5
77 25 2 463 373
SET: FOOTREST SYSTEM - CLASSIC-
77 25 2 463 375
SET: FOOTREST SYSTEM - CLUB SPORTAlternative for position 5-
77 25 2 463 374
SET: FOOTREST SYSTEM - STORMAlternative for position 5-
6
77 25 2 463 379
SET: SUPPORT RIDERS SEAT - CLASSIC-
77 25 2 463 380
SET: SUPPORT RIDERS SEAT - STORMAlternative for position 6-
77 25 2 463 381
SET: SUPPORT RIDERS SEAT - CLUB SPORTAlternative for position 6-
7
77 25 2 463 376
SET: PILLION-PASSENGER FOOTRESTS - CLASSIC-
77 25 2 463 377
SET: PILLION-PASSENGER FOOTRESTS - STORMAlternative for position 7-
77 25 2 463 378
SET: PILLION-PASSENGER FOOTRESTS - CLUB SPORTAlternative for position 7-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
