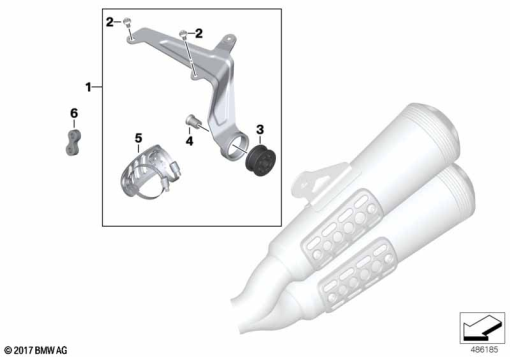

Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77 11 8 358 245 | SET: SET, RETAINING PLATE FOR REAR MUFFLER | - | |
| - | 46 51 8 561 799 | PASSENGER SEAT FRAME - BLACK | - | |
| - | 46 51 8 562 978 | PASSENGER SEAT FRAME - BLACK | - | |
| 2 | 07 12 9 907 404 | FILLISTER-HEAD SCREW - M6X12-8.8-ZNNIV | - | |
| 3 | 18 51 7 728 002 | RUBBER INSULATION ELEMENT | - | |
| 4 | 18 51 7 708 081 | SPACER SLEEVE | - | |
| 5 | 77 11 8 396 074 | SET: SET HEEL GUARD | - | |
| 6 | 77 25 8 536 857 | SET: SET OF COVERS FOR MAIN FRAME | - |
