Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77 12 8 357 955 | SET: SET, CYLINDER HEAD COVER GUARD, ALUMINUM | - | |
| 2 | 11 12 7 717 585 | CYLINDER HEAD COVER GUARD, ALU, LEFT | - | |
11 12 7 717 586 | CYLINDER HEAD COVER GUARD, RIGHTAlternative for position 2 | - | ||
| 3 | 11 12 7 717 583 | BUMP STOP, BOTTOM LEFT | - | |
11 12 7 717 584 | BUMP STOP, BOTTOM RIGHTAlternative for position 3 | - | ||
| 4 | 11 12 7 717 581 | BUMP STOP, TOP LEFT | - | |
11 12 7 717 582 | BUMP STOP TOP RIGHTAlternative for position 4 | - | ||
| 5 | 71 60 7 681 777 | BUSH - DI=7 L=6.5 | - | |
| 6 | 07 12 9 905 558 | INTERNAL TORX SCREW WITH WASHER - M6X25-U1-8.8 | - | |
| 8 | 77 12 8 392 096 | EDGE PROTECTION | - | |
| - | 77 12 8 357 955 | SET: SET, CYLINDER HEAD COVER GUARD, ALUMINUM | - |

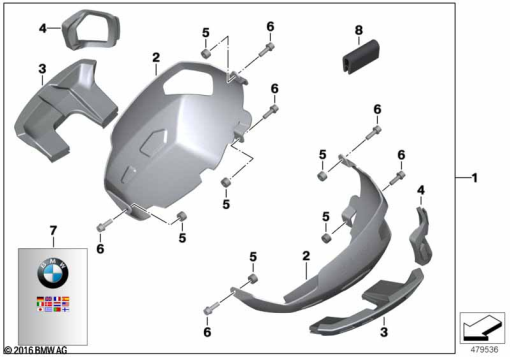

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
