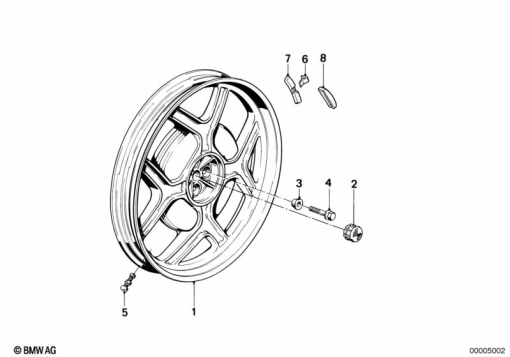

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 36 31 1 451 831 | CAST IRON RIM SILVER REAR - 2,75X18 | - | |
36 31 2 310 075 | CAST RIM, BLACK REAR - 2,75X18Alternative for position 1 | - | ||
| 2 | 36 31 1 454 273 | CAP - D=38MM | - | |
| 4 | 36 31 2 333 225 | WHEEL BOLT - L=55MM | - | |
| 5 | 36 32 1 452 748 | VALVE - D=8MM (to 06/86) | - | |
| 8 | 36 31 7 720 635 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 5G | - | |
36 31 7 720 636 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 10GAlternative for position 8 | - | ||
36 31 7 720 637 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 15GAlternative for position 8 | - | ||
36 31 7 720 638 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 20GAlternative for position 8 | - | ||
36 31 7 720 639 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 25GAlternative for position 8 | - | ||
36 31 7 720 640 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 30GAlternative for position 8 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
