K75C (K569) | Vehicle Trim

METALLIC PAINT SET

Diagram #51_8097 | 28 parts

100%

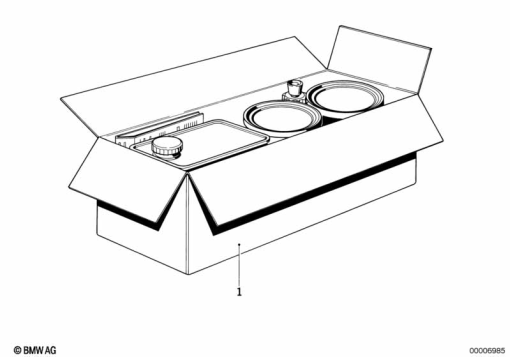

K75C (K569) METALLIC PAINT SET exploded view parts diagram

Parts List (28)

#Part NumberDescriptionQty
1
51 91 0 140 597
BASE PAINT, TWO-COAT RED - 500ML 031-
51 91 1 455 732
SET: METALLIC PAINT COLUMBIASILVER - 250ML 204Alternative for position 1-
51 91 1 455 733
SET: METALLIC PAINT COLUMBIASILVER - 1000ML 204Alternative for position 1-
51 91 1 456 589
SET: METALLIC LACQUER ONYX BLACK - 250ML 228Alternative for position 1-
51 91 1 456 590
SET: METALLIC PAINT BRILLANTSILVER - 250ML 235Alternative for position 1-
51 91 1 456 591
SET: METALLIC LACQUER ONYX BLACK - 1000ML 228Alternative for position 1-
51 91 1 456 592
SET: METALLIC PAINT BRILLANTSILVER - 1000ML 235Alternative for position 1-
51 91 1 456 867
SET: METALLIC PAINT DIAMANTGRAY - 1000ML 186Alternative for position 1-
51 91 1 456 868
SET: METALLIC PAINT DIAMANTGRAY - 250ML 186Alternative for position 1-
51 91 1 456 871
SET: METALLIC LACQUER KARIBICBLUE - 1000ML 183Alternative for position 1-
51 91 1 456 872
SET: METALLIC LACQUER KARIBICBLUE - 250ML 183Alternative for position 1-
51 91 2 301 323
SET: METALLIC PAINT CLASSICBLACK - 250ML 162Alternative for position 1-
51 91 2 301 324
SET: METALLIC PAINT CLASSICBLACK - 1000ML 162Alternative for position 1-
51 91 2 308 991
SET: METALLIC PAINT BERMUDABLUE - 250ML 225Alternative for position 1-
51 91 2 308 993
SET: METALLIC PAINT BERMUDABLUE - 1000ML 225Alternative for position 1-
51 91 2 322 099
SET: METALLIC LACQUER TITANBLUE - 250ML 241Alternative for position 1-
51 91 2 322 102
SET: METALLIC LACQUER TITANBLUE - 1000ML 241Alternative for position 1-
51 91 2 322 434
SET: METALLIC LACQUER TOPASROTVIOLETT - 250ML 246Alternative for position 1-
51 91 2 322 437
SET: METALLIC LACQUER TOPASROTVIOLETT - 1000 ML 246Alternative for position 1-
51 91 2 323 022
SET: METALLIC LACQUER KOENIGSBLUE - 250ML 270Alternative for position 1-
51 91 2 323 026
SET: METALLIC LACQUER KOENIGSBLUE - 1000ML 270Alternative for position 1-
51 91 2 323 165
METALLIC PAINT SET WHITEALU - 250ML 265Alternative for position 1-
51 91 2 323 629
SET: METALLIC LACQUER MYSTIKROT - 250ML 323Alternative for position 1-
51 91 2 323 630
SET: METALLIC LACQUER SEIDENBLUE - 250ML 338Alternative for position 1-
51 91 2 323 631
SET: METALLIC PAINT ASTRALBLUE - 250ML 330Alternative for position 1-
51 91 2 323 633
SET: METALLIC LACQUER MYSTIKROT - 1000ML 323Alternative for position 1-
51 91 2 323 634
SET: METALLIC LACQUER SEIDENBLUE - 1000ML 338Alternative for position 1-
51 91 2 323 635
SET: METALLIC PAINT ASTRALBLUE - 1000ML 330Alternative for position 1-
