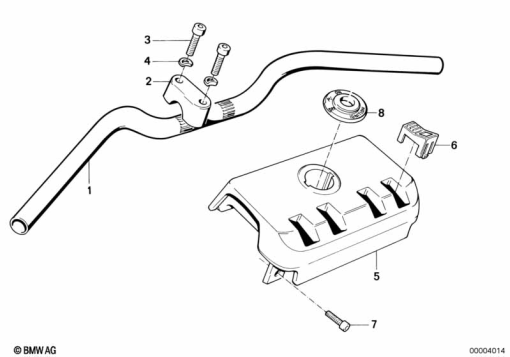

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 71 2 303 050 | HANDLEBAR, BLACK | - | |
32 71 2 303 052 | HANDLEBAR, RAISED, HEATED GRIP, BLACKAlternative for position 1 | - | ||
| 2 | 32 71 1 453 159 | CLAMPING SUPPORT, TOP | - | |
| 3 | 07 11 9 902 984 | FILLISTER-HEAD SCREW - M8X40-8.8-ZNS3 | - | |
07 11 9 919 648 | SOCKET HEAD CAP SCREWAlternative for position 3 | - | ||
| 4 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | - | |
| 5 | 32 71 1 459 317 | IMPACT PLATE (to 08/88) | - | |
32 71 2 303 554 | IMPACT PROTECTIVE PLATE F PLUG-IN SOCKET (from 08/88)Alternative for position 5 | - | ||
| 6 | 32 71 1 459 318 | COVERING CAP | - | |
| 7 | 07 11 9 919 792 | FILLISTER-HEAD SCREW - M6X10 | - | |
| 8 | 61 32 1 459 319 | STEP PLATE | - |
