K75C (K569) | Steering

HANDLE UNIT, RIGHT

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #32_1967 | 24 parts

100%

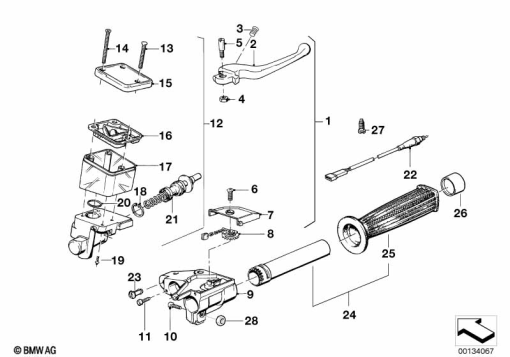

K75C (K569) HANDLE UNIT, RIGHT exploded view parts diagram

Parts List (24)

#	Part Number	Description	Qty
1	32 72 2 310 741	HANDLE UNIT, RIGHT - D=13MM/ABS	-
2	32 72 2 310 112	HAND LEVER RIGHT	-
3	32 72 2 310 113	SCREW	-
4	32 72 1 238 382	NUT, SELF-LOCKING - M6	-
5	32 72 1 451 749	SCREW - M6	-
6	32 72 1 454 245	COUNTERSUNK SCREW - M5X15-ZN-SW	-
7	32 72 1 457 037	COVER	-
8	32 72 1 457 036	CAM DISC - 36MM	-
9	32 72 1 451 734	HOUSING	-
11	32 72 1 451 987	FILLISTER-HEAD SCREW - M5X20-Z4-8.8-SW	-
12	32 72 2 310 748	CYLINDER WITH PISTON - D=13MM	-
13	07 11 9 928 128	COUNTERSUNK HEAD SCREW - M5X45-4.8-ZN SW	-
14	07 11 9 928 129	COUNTERSUNK SCREW BLACK - M5X55-4.8-ZN SW	-
15	32 72 1 454 944	COVER	-
16	32 72 1 451 742	RUBBER BOOT	-
17	32 72 1 451 746	CONTAINER	-
18	07 11 9 934 620	LOCK RING - 17X1	-
19	32 72 1 242 625	OVAL-HEAD SCREW - 4X12-WN1412-H	-
20	32 72 1 242 624	O-RING	-
22	61 31 1 459 569	SWITCH	-
23	32 72 1 451 622	SUPPORT	-
24	32 72 1 454 129	HANDLE	-
25	32 72 1 237 812	RUBBER GRIP SQUARE RIGHT	-
27	32 72 1 454 414	LOCKING BOLT	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
