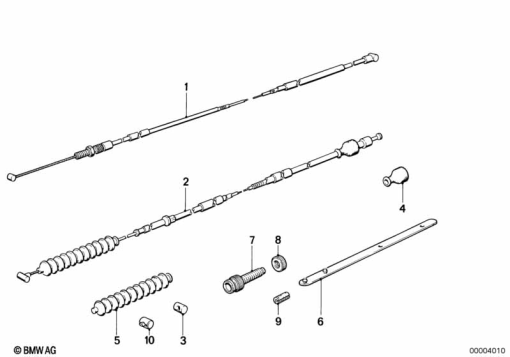

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 73 1 451 636 | CHOKE CABLE - L=1250MM | - | |
32 73 1 451 638 | CHOKE CABLE - L=1375MMAlternative for position 1 | - | ||
| 2 | 32 73 2 324 955 | CLUTCH CABLE - L=1510MM | - | |
32 73 2 324 960 | CLUTCH CABLE - L=1625MMAlternative for position 2 | - | ||
| 3 | 07 11 9 988 505 | NIPPLE | - | |
| 4 | 32 73 1 230 038 | 32 73 1 230 038 | - | |
| 5 | 32 73 2 325 866 | 0.01 | - | |
| 6 | 32 73 1 451 809 | CABLE TIE - L=183MM | - | |
61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MMAlternative for position 6 | - | ||
| 7 | 32 72 1 234 854 | CABLE ADJUSTER | - | |
| 8 | 32 72 1 232 516 | KNURLED HEAD NUT - M10X1 | - | |
| 9 | 32 72 1 231 610 | FELTRING | - | |
| 10 | 32 72 1 233 550 | NIPPLE HOLDER - D=10MM | - |
