K75C (K569) | Seat

SLIDING DUAL SEAT

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #52_3686 | 33 parts

100%

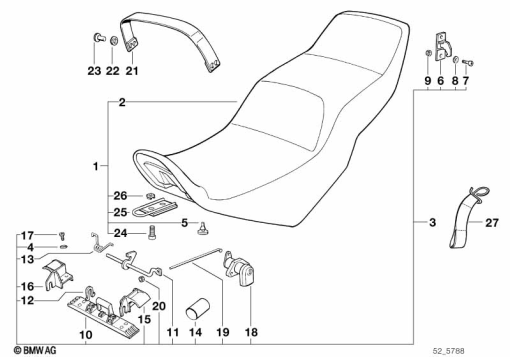

K75C (K569) SLIDING DUAL SEAT exploded view parts diagram

Parts List (33)

#	Part Number	Description	Qty
1	52 53 2 308 373	SLIDING DUAL SEAT - BLACK 800MM	-
	52 53 2 323 133	LOW SLIDING DUAL SEAT - 760MM GRAYAlternative for position 1	-
	52 53 2 324 464	LOW SLIDING DUAL SEAT - 760MM BLACKAlternative for position 1	-
2	52 53 2 323 134	SEAT COVER VINYL - GRAY	-
	52 53 2 324 465	SEAT COVER VINYL BLACKAlternative for position 2	-
3	52 53 9 062 058	SET: MODIFICATION KIT FOR SLIDING DUAL SEAT - 760MM	-
4	07 11 9 904 206	WASHER - 10X5,3X1-200 HV	-
	07 11 9 936 439	WASHER - 5.3-140 HV-ZNSAlternative for position 4	-
5	52 53 1 230 319	RUBBER SUPPORT - D=18MM	-
	52 53 1 236 128	BUMP STOP - H=10Alternative for position 5	-
6	52 53 2 308 127	LOCKING HOOK	-
7	07 11 9 907 627	FILLISTER HEAD SCREW - M5X12-ZN	-
8	07 11 9 904 206	WASHER - 10X5,3X1-200 HV	-
	07 11 9 936 439	WASHER - 5.3-140 HV-ZNSAlternative for position 8	-
9	07 11 9 905 729	HEX NUT - M5-8-ZNNIV SI	-
	07 11 9 905 729	HEX NUTAlternative for position 9	-
	07 11 9 922 035	HEX NUTAlternative for position 9	-
	07 11 9 922 036	HEX NUTAlternative for position 9	-
10	51 25 2 308 117	LOCK	-
11	51 25 2 308 118	CATCH	-
12	51 25 2 308 112	SPRING	-
13	51 25 2 308 121	RETAINER SPRING	-
14	51 25 2 308 126	PROTECTIVE HOSE	-
15	51 25 2 308 123	CLAMPING LEFT	-
16	51 25 2 308 124	CLAMPING RIGHT	-
17	07 11 9 904 303	FILLISTER-HEAD SCREW - M5X10-8.8-ZNNIV	-
18	51 25 2 308 125	HOUSING	-
19	51 25 2 308 122	SPOKE	-
20	07 12 9 906 098	HEX NUT - M4-A2-70	-
24	07 11 9 902 316	FILLISTER HEAD WITH WASHER - M6X16-Z1-8.8	-
25	52 53 2 308 366	CATCH BRACKET	-
26	07 12 9 926 512	CAGE NUT - M6	-
27	51 25 2 309 417	HOLDER	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
