K75C (K569) | Rear Axle & Suspension

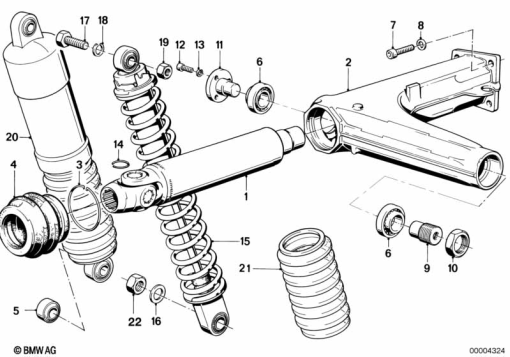

REAR WHEEL SWINGING ARM MOUNTING PARTS
Diagram #33_0641 | 27 parts
100%
Parts List (27)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 26 11 1 454 063 | DRIVE SHAFT - Z 20 | - | |
| 2 | 33 17 1 450 492 | REAR WHEEL SWINGING ARM | - | |
| 3 | 33 17 1 450 836 | SNAP RING | - | |
| 4 | 33 17 1 454 552 | RUBBER BOOT | - | |
| 5 | 33 53 1 450 207 | RUBBER MOUNTING | - | |
| 6 | 33 17 1 241 546 | TAPERED ROLLER BEARING - 40X17X17 | - | |
| 7 | 07 11 9 901 088 | FILLISTER-HEAD SCREW - M10X45 (to 12/96) | - | |
07 11 9 919 672 | FILLISTER-HEAD SCREWAlternative for position 7 | - | ||
| 8 | 33 17 1 451 567 | WASHER - 10,5 | - | |
| 9 | 33 17 1 450 494 | PIVOT PIN | - | |
| 10 | 33 53 3 054 174 | HEX NUT | - | |
| 11 | 33 17 2 311 068 | PIVOT PIN | - | |
| 12 | 07 12 9 905 536 | ISA SCREW - M6X16-8.8-ZNNIV | - | |
07 11 9 901 438.1 | M6X16 SS ALLEN BOLTAlternative for position 12 | - | ||
| 13 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | - | |
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 13 | - | ||
07 11 9 904 496 | WAVE WASHER - B6-ZNS3Alternative for position 13 | - | ||
07 11 9 932 0701 | SS 6MM WASHERAlternative for position 13 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 13 | - | ||
| 14 | 26 11 1 451 977 | SNAP RING - 19,7X2/5MM | - | |
| 15 | 33 53 1 454 833 | SPRING STRUT, REAR | - | |
| 16 | 07 11 9 901 766 | WASHER - A13/HV-ZNS (to 12/96) | - | |
07 11 9 904 119 | WASHER - 12-300 HV-ZNS3Alternative for position 16 | - | ||
| 17 | 07 11 9 900 587 | HEX BOLT - M12X45-10.9-PHR | - | |
| 18 | 07 11 9 936 442 | WASHER - 13-140 HV-ZN | - | |
| 19 | 07 12 9 906 866 | HEX NUT - M12-8-ZNS3 | - | |
| 21 | 33 53 1 454 305 | RUBBER BOOT | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
