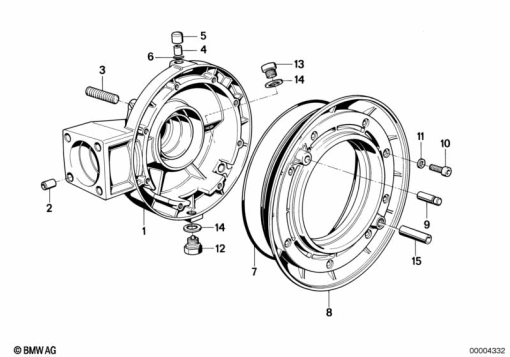

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 11 1 454 095 | REAR DRIVE HOUSING (to 07/89) | 1 | |
| 2 | 33 11 1 241 260 | DOWEL - 12X15MM (to 07/89) | 1 | |
| 3 | 07 12 9 908 096 | STUD BOLT - M12X60-8.8-ZNS (to 07/89) | 1 | |
| 4 | 23 11 1 451 548 | SLEEVE (to 07/89) | 1 | |
| 4 | 33 75 8 544 490 | SLEEVE | 1 | |
| 4 | 33 75 8 544 490 | SLEEVE (to 07/89) | 1 | |
| 5 | 33 11 1 451 988 | CAP (to 07/89) | 1 | |
| 6 | 33 11 1 454 606 | O-RING (to 07/89) | 1 | |
| 7 | 33 11 1 241 257 | O-RING - 171,1X2,62 (to 07/89) | 1 | |
| 8 | 33 11 1 450 794 | HOUSING COVER (to 07/89) | 1 | |
| 9 | 33 11 1 241 620 | PIN (to 07/89) | 1 | |
| 10 | 07 11 9 920 059 | FILLISTER-HEAD SCREW - M8X35 (to 07/89) | 1 | |
| 11 | 07 11 9 931 684 | WASHER - 8,4 140HV (to 07/89) | 1 | |
| 12 | 11 13 1 744 329 | SCREW PLUG, MAGNETIC - M14X1,5 (to 07/89) | 1 | |
| 13 | 33 11 1 451 349 | SCREW PLUG - M14X1,5-ZNS (to 07/89) | 1 | |
| 14 | 07 11 9 963 200 | GASKET RING - A14X18-AL (to 07/89) | 1 | |
| 15 | 33 11 1 451 169 | PIPE - D=15,8 L=89,5MM (to 07/89) | 1 |
