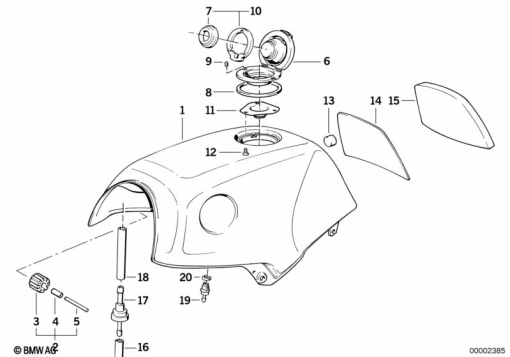

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 11 0 144 259 | FUEL TANK (to 01/93) | - | |
| 6 | 16 11 2 309 403 | FILLER CAP - KAT/SHED | - | |
| 8 | 16 11 1 453 690 | GASKET RING | - | |
| 9 | 07 11 9 904 433 | COUNTERSUNK HEAD SCREW - M4X10 | - | |
| 10 | 16 11 9 062 461 | SET: GASKET SET | - | |
| 11 | 16 11 2 309 404 | INTERMEDIATE PLATE - KAT | - | |
| 12 | 07 11 9 918 519 | SELF TAPPING SCREW - M4X8 | - | |
| 14 | 16 11 1 453 327 | PLATE | - | |
| 15 | 16 11 2 303 111 | PLATE | - | |
| 16 | 16 11 1 464 706 | HOSE | - | |
| 17 | 16 13 1 453 424 | VALVE | - | |
| 18 | 11 72 7 545 323 | VACUUM HOSE BLACK - 3,5X1,8 (meter) | - | |
| 19 | 16 12 1 455 348 | VALVE | - | |
| 20 | 07 11 9 963 252 | GASKET RING - A16X20-AL | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
