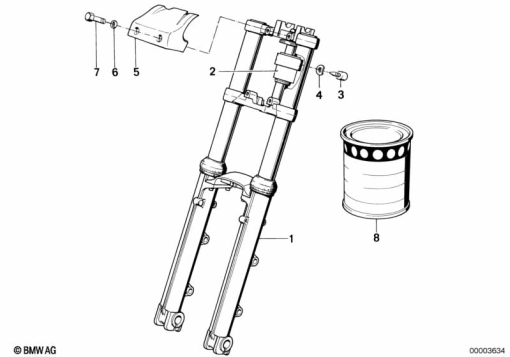

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 2 311 312 | TELESCOPE-FORK | - | |
| 2 | 46 51 2 310 218 | DAMPER RING FOR FLUIDBLOCK | - | |
| - | 07 58 9 058 193 | LUBRICANT SILICONE 300 - 10G | - | |
| 3 | 46 51 2 311 423 | SCREW - M6X18 | - | |
| 4 | 07 11 9 932 0701 | SS 6MM WASHER | - | |
07 11 9 932 073 | SPRING WASHER BLACK - B6-ZNAlternative for position 4 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 4 | - | ||
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 4 | - | ||
07 11 9 904 496 | WAVE WASHER - B6-ZNS3Alternative for position 4 | - | ||
| 8 | 31 42 7 652 283 | TELESCOPING FORK OIL - 5000ML SAE10 | - | |
31 42 9 060 537 | TELESCOPING FORK OIL - 2500MLAlternative for position 8 | - | ||
31 42 9 062 158 | TELESCOPIC FORK OIL TYPE 1 - 1000MLAlternative for position 8 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
