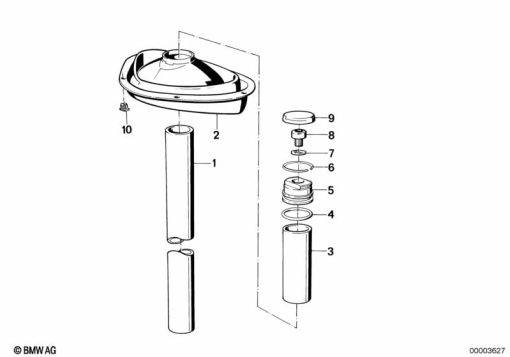

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 1 450 534 | STANCHION (to 08/91) | 1 | |
| 2 | 31 42 1 234 908 | RUBBER BOOT | 1 | |
| 3 | 31 42 1 450 529 | SPACER TUBE (to 08/91) | 1 | |
| 4 | 31 42 1 450 532 | O-RING - 30X3 (to 08/91) | 1 | |
| 5 | 31 42 1 450 531 | SPRING RETAINER (to 08/91) | 1 | |
| 6 | 31 42 1 450 543 | SNAP RING (to 08/91) | 1 | |
| 7 | 07 11 9 963 073 | GASKET RING - A10X13.5-AL (to 08/91) | 1 | |
| 8 | 07 11 9 919 662 | FILLISTER-HEAD SCREW - M10X12 (to 08/91) | 1 | |
| 9 | 31 42 1 450 544 | COVER (to 08/91) | 1 |
