K75C (K569) | Frame, Fairing, Cases
WHEEL COVER, REAR

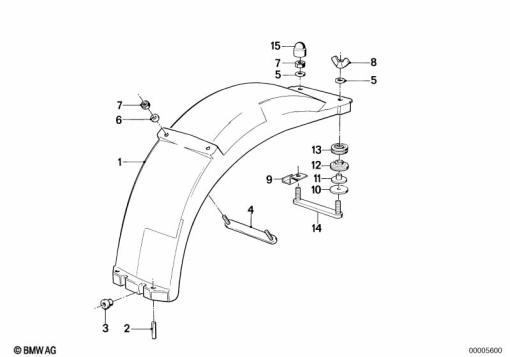

Diagram #46_0104 | 16 parts | 1 available in shop
100%
Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 62 1 450 471 | MUDGUARD REAR - BLACK-MATT | 1 | |
| 2 | 07 11 9 941 381 | ROLL PIN - 6X28 | 1 | |
| 3 | 46 62 1 450 473 | BUSHING | 1 | |
| 4 | 46 62 1 450 700 | SHACKLE | 1 | |
| 5 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | 1 | |
| 6 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | 1 | |
| 7 | 07 12 9 904 876 | HEX NUT - M6-8-ZNS3 | 1 | |
| 7 | 07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI | 1 | |
| 5 | 07 11 9 936 426 | FLAT WASHER | 1 | |
| 10 | 52 53 1 453 322 | SHIM | 1 | |
| 11 | 52 53 1 455 344 | BUSH | 1 | |
| 12 | 52 53 1 455 343 | RUBBER MOUNTING | 1 | |
| 7 | 07 12 9 905 817 | HEX NUT | 1 | |
| 13 | 52 53 1 451 629 | RUBBER MOUNTING | 1 | |
| 14 | 46 62 1 453 328 | SHACKLE | 1 | |
| 15 | 46 62 1 453 668 | PROTECTIVE CAP FOR B+ - M6 | 1 |
