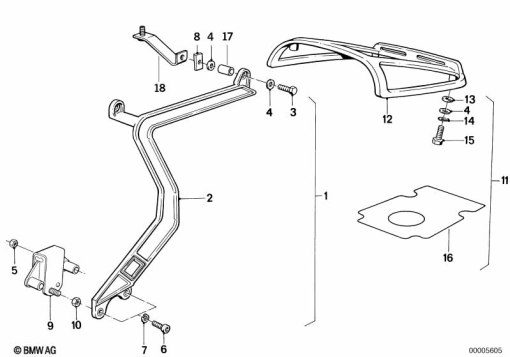

Parts List (33)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 54 2 303 189 | SET: SET CASE HOLDER | - | |
| 2 | 46 54 2 300 037 | LEFT CASE HOLDER | - | |
46 54 2 300 038 | CASE HOLDER RIGHTAlternative for position 2 | - | ||
| 3 | 07 11 9 913 016 | HEX BOLT - M6X20-8.8-ZNS | - | |
07 11 9 913 016.1 | STAINLESS 6 X 20 BOLTAlternative for position 3 | - | ||
| 4 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | - | |
07 11 9 936 426 | FLAT WASHERAlternative for position 4 | - | ||
| 5 | 07 12 9 904 876 | HEX NUT - M6-8-ZNS3 | - | |
07 12 9 905 817 | HEX NUTAlternative for position 5 | - | ||
07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SIAlternative for position 5 | - | ||
| 6 | 07 12 9 903 809 | ISA SCREW - M6X40 | - | |
07 12 9 905 536 | ISA SCREW - M6X16-8.8-ZNNIVAlternative for position 6 | - | ||
| 7 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | - | |
| - | 07 11 9 901 438.1 | M6X16 SS ALLEN BOLT | - | |
| 7 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | - | |
07 11 9 904 496 | WAVE WASHER - B6-ZNS3Alternative for position 7 | - | ||
07 11 9 932 0701 | SS 6MM WASHERAlternative for position 7 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 7 | - | ||
| 8 | 07 12 9 926 512 | CAGE NUT - M6 | - | |
| 9 | 18 21 1 454 982 | RUBBER MOUNTING | - | |
| 10 | 07 12 9 904 002 | SELF-LOCKING HEX NUT - M8-8-ZNS3 | - | |
| 11 | 46 54 2 300 350 | SET: SET LUGGAGE CARRIER | - | |
46 54 2 303 559 | SET: LUGGAGE CARRIER - CHROMEAlternative for position 11 | - | ||
| 12 | 46 54 2 303 558 | LUGGAGE CARRIER - CHROME | - | |
52 53 2 300 052 | LUGGAGE GRIDAlternative for position 12 | - | ||
| 13 | 46 62 1 230 798 | RUBBER WASHER | - | |
| 14 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | - | |
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 14 | - | ||
07 11 9 904 496 | WAVE WASHER - B6-ZNS3Alternative for position 14 | - | ||
| 15 | 07 11 9 913 021 | HEX BOLT - M6X28-8.8-ZNS | - | |
| - | 07 11 9 932 0701 | SS 6MM WASHER | - | |
| - | 07 11 9 932 073 | BLACK SPRING WASHER | - | |
| 16 | 51 14 2 303 387 | FOIL | - |
