Parts List (33)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 1 457 238 | PLATE RIGHT BLACK RIB UNPAINTED | - | |
46 71 1 458 022 | PLATE RIGHT BLACK RIB UNPAINTED ABSAlternative for position 1 | - | ||
46 71 1 457 237 | PLATE LEFT BLACK RIB UNPAINTEDAlternative for position 1 | - | ||
46 71 1 458 021 | PLATE LEFT BLACK RIB UNPAINTED ABSAlternative for position 1 | - | ||
61 31 1 459 588 | BRAKE LIGHT SWITCH FOOT BRAKEAlternative for position 1 | - | ||
46 71 1 457 236 | PLATE RIGHT BLACK (from 08/90)Alternative for position 1 | - | ||
46 71 1 457 235 | PLATE LEFT BLACK (from 08/90)Alternative for position 1 | - | ||
61 31 1 459 588 | BRAKE LIGHT SWITCH FOOT BRAKE (from 08/90)Alternative for position 1 | - | ||
| 2 | 07 11 9 901 025 | FILLISTER-HEAD SCREW - M8X30-8.8-ZNS | - | |
| 3 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | - | |
| 4 | 46 71 1 454 253 | FOOTREST, LEFT | - | |
46 71 1 454 254 | FOOTREST, RIGHTAlternative for position 4 | - | ||
| 5 | 46 71 1 454 887 | BUSHING | - | |
| 6 | 46 71 1 451 220 | PIN - 8X55 | - | |
| 7 | 46 71 1 451 643 | RETAINER SPRING LEFT | - | |
46 71 1 451 644 | RETAINER SPRING RIGHTAlternative for position 7 | - | ||
| 8 | 46 71 1 451 632 | SLEEVE | - | |
| 9 | 07 11 9 905 230 | SPLIT PIN - 2X16 | - | |
| 10 | 46 71 1 457 390 | SUPPORTING BRACKET | - | |
| - | 46 71 1 457 392 | STOPPER | - | |
| - | 07 11 9 913 843 | HEX BOLT - M10X35 | - | |
| 10 | 46 71 1 457 476 | SUPPORTING BRACKET BLACK | - | |
| - | 46 71 1 457 474 | STOPPER - BLACK | - | |
| - | 07 11 9 913 843 | HEX BOLT - M10X35 | - | |
| 12 | 46 71 1 454 388 | WASHER | - | |
| 13 | 07 14 9 180 923 | WASHER - 8,4X18X2MM | - | |
| 14 | 07 11 9 901 049 | FILLISTER-HEAD SCREW - M10X30-8.8-ZNS | - | |
07 12 9 905 534 | FILLISTER-HEAD SCREW - M10X25Alternative for position 14 | - | ||
| 15 | 07 11 9 904 463 | WAVE WASHER - B10-ZNS3 | - | |
| 16 | 07 12 9 964 672 | SELF-LOCKING HEX NUT - M10 | - | |
| 17 | 46 71 1 454 535 | FOOTREST, REAR LEFT | - | |
46 71 1 454 536 | FOOTREST, REAR RIGHTAlternative for position 17 | - | ||
| 18 | 46 71 7 717 831 | PIN - D=8MM/L=36MM | - |

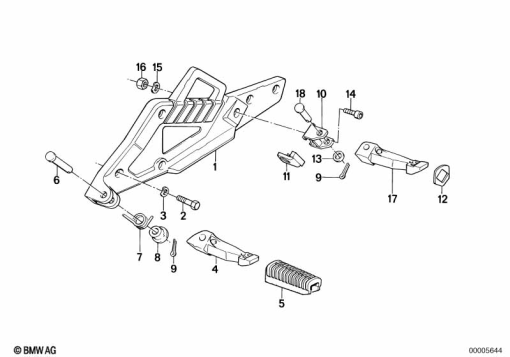

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
