K75C (K569) | Exhaust System
EXHAUST SYSTEM

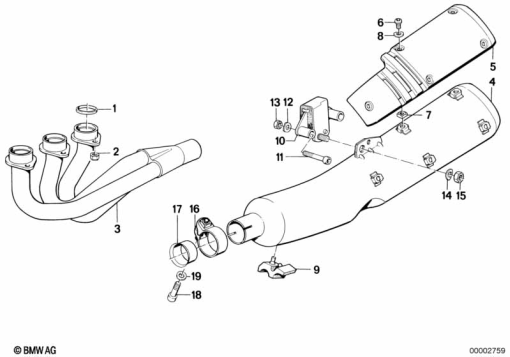

Diagram #18_0276 | 34 parts
100%
Parts List (34)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 62 7 662 083 | GASKET RING - C32X40 | - | |
| 2 | 11 62 1 744 323 | HEX NUT - M8 SW12 | - | |
| 3 | 18 11 1 454 285 | EXHAUST PIPE | - | |
| 4 | 18 12 1 454 290 | MUFFLER | - | |
18 32 1 464 505 | MUFFLER, CATALYTIC CONVERTERAlternative for position 4 | - | ||
18 32 9 062 574 | MUFFLERAlternative for position 4 | - | ||
| 5 | 18 12 1 454 499 | COVER | - | |
| 6 | 18 12 1 451 806 | SCREW - M6X5,7 | - | |
18 12 2 310 147 | OVAL-HEAD SCREW - M6X6-10.9-CRAlternative for position 6 | - | ||
| 7 | 18 12 1 451 805 | SQUARE NUT - M6 | - | |
| 8 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | - | |
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 8 | - | ||
07 11 9 932 0701 | SS 6MM WASHERAlternative for position 8 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 8 | - | ||
| 9 | 18 12 1 451 996 | ABSORBER | - | |
| - | 46 54 2 300 037 | LEFT CASE HOLDER | - | |
| 10 | 18 21 1 454 981 | RUBBER MOUNTING | - | |
| - | 46 54 2 300 037 | LEFT CASE HOLDER | - | |
| 10 | 18 21 1 454 982 | RUBBER MOUNTING | - | |
| - | 46 54 2 300 037 | LEFT CASE HOLDER | - | |
| 11 | 07 12 9 903 809 | ISA SCREW - M6X40 | - | |
| 12 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | - | |
07 11 9 932 0701 | SS 6MM WASHERAlternative for position 12 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 12 | - | ||
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 12 | - | ||
07 11 9 904 496 | WAVE WASHER - B6-ZNS3Alternative for position 12 | - | ||
| 13 | 07 12 9 905 542 | HEX NUT WITH PLATE - AM6-8-ZNNIV SI | - | |
| 14 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | - | |
| 15 | 07 12 9 904 002 | SELF-LOCKING HEX NUT - M8-8-ZNS3 | - | |
| 16 | 18 21 1 454 493 | CLAMP | - | |
| 17 | 18 12 1 457 142 | GASKET | - | |
| 18 | 07 11 9 901 027 | FILLISTER-HEAD SCREW - M8X35 ZNS | - | |
| 19 | 07 11 9 931 697 | WASHER - 8,4 | - | |
07 11 9 904 826 | WasherAlternative for position 19 | - |
