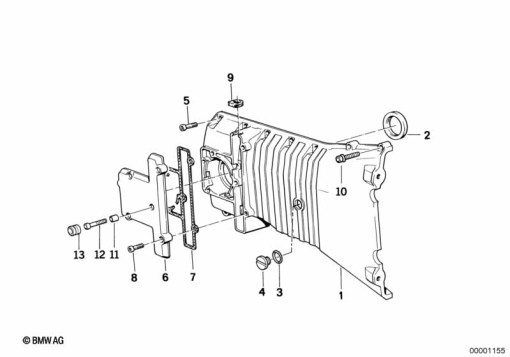

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 14 1 460 273 | TIMING CASE COVER | - | |
11 14 2 322 282 | TIMING CASE COVERAlternative for position 1 | - | ||
11 14 1 461 423 | SCREW PLUG - M20X1,5Alternative for position 1 | - | ||
07 11 9 963 342 | GASKET RING - A20X24-CUAlternative for position 1 | - | ||
| 2 | 11 14 7 654 531 | SHAFT SEAL - 36X52X7 | - | |
| 5 | 11 14 1 460 678 | FILLISTER-HEAD SCREW - M6X25 | - | |
| 6 | 11 14 1 460 275 | COVER | - | |
| 7 | 11 14 1 460 307 | GASKET | - | |
| 8 | 11 13 1 460 677 | MULTI-PURPOSE BOLT - M6X20-Z3-ZNS | - | |
| 9 | 61 13 1 459 072 | GROMMET | - | |
| 10 | 07 11 9 906 058 | FILLISTER HEAD WITH WASHER - M6X35-ZNNIV SI | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
