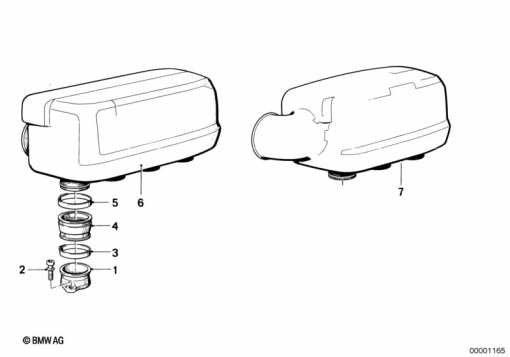

Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 61 1 460 408 | INTAKE MANIFOLD | - | |
| 2 | 11 13 1 460 677 | MULTI-PURPOSE BOLT - M6X20-Z3-ZNS | - | |
| 3 | 11 61 1 460 900 | CLAMP - D=48,5 | - | |
| 4 | 11 61 1 460 755 | RUBBER GROMMET | - | |
| 5 | 11 61 1 460 901 | CLAMP - D=50 | - | |
| 7 | 11 61 1 460 518 | AIR ACCUMULATOR | - | |
11 61 1 461 999 | AIR ACCUMULATOR - 37KWAlternative for position 7 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
