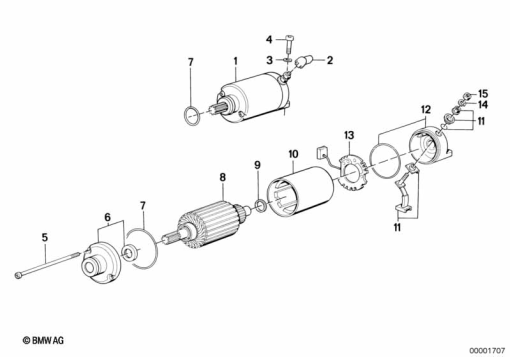

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 12 41 8 525 345 | STARTER | 1 | |
| 2 | 12 41 1 459 411 | PROTECTION CAP | 1 | |
| 3 | 07 11 9 904 606 | WASHER - 6-200 HV-ZNS3 | 1 | |
| 4 | 07 12 9 903 807 | ISA SCREW - M6X25-8.8-ZNS3 | 1 | |
| 5 | 12 41 1 459 499 | FILLISTER-HEAD SCREW | 1 | |
| 6 | 12 41 1 459 497 | HOUSING ASSY FRONT | 1 | |
| 7 | 12 41 1 459 445 | SET: O-RING SET | 1 | |
| 8 | 12 41 1 459 496 | ARMATURE | 1 | |
| 9 | 12 41 1 459 566 | SHIM - 0,300MM | 1 | |
| 10 | 12 41 1 459 495 | EXCITER WINDING | 1 | |
| 11 | 12 41 1 459 567 | SET: CARBON BRUSH SET | 1 | |
| 12 | 12 41 1 459 498 | COLLECTOR GUIDING | 1 | |
| 13 | 12 41 1 459 297 | BRUSH HOLDER PLATE | 1 | |
| 14 | 07 11 9 933 082 | SPRING WASHER - B6 | 1 | |
| 15 | 07 12 9 905 542 | HEX NUT WITH PLATE - AM6-8-ZNNIV SI | 1 |
