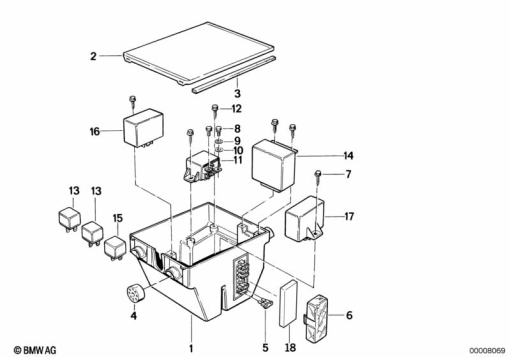

Parts List (26)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 13 1 459 002 | FUSE BOX | 1 | |
| 2 | 61 13 1 459 155 | COVER | 1 | |
| 3 | 61 13 1 459 181 | GASKET - 190MM | 1 | |
| 4 | 51 16 1 459 064 | SUSPENSION | 1 | |
| 5 | 61 13 1 372 524 | FUSE BROWN - 7,5A | 1 | |
| 5 | 61 13 1 372 526 | FUSE BLUE - 15A | 1 | |
| 6 | 61 13 1 459 094 | COVER | 1 | |
| 7 | 07 14 7 194 471 | SCREW FOR PLASTIC - TS5X12-ZNS3 | 1 | |
| 8 | 07 11 9 913 218 | HEX BOLT - M5X10 | 1 | |
| 9 | 07 11 9 936 107 | TOOTH WASHER - A5,1 | 1 | |
| 10 | 07 11 9 904 206 | WASHER - 10X5,3X1-200 HV | 1 | |
| 10 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | 1 | |
| 11 | 61 31 1 459 008 | STARTER RELAY | 1 | |
| 12 | 07 14 7 194 471 | SCREW FOR PLASTIC - TS5X12-ZNS3 | 1 | |
| 13 | 61 31 1 373 585 | RELAY - YELLOW | 1 | |
| 13 | 61 31 1 373 588 | MINI-RELAY | 1 | |
| 13 | 61 31 1 373 585 | RELAY - YELLOW | 1 | |
| 13 | 61 31 1 373 588 | MINI-RELAY | 1 | |
| 14 | 61 31 1 459 224 | RELAY FOR FLASHER | 1 | |
| 15 | 61 36 8 373 700 | RELAY, MAKE CONTACT, WHITE GREEN | 1 | |
| 15 | 61 31 1 459 675 | RELAY - ABS/ÖFFNER/BLUE | 1 | |
| 15 | 61 31 1 459 676 | SAFETY RELAY ABS | 1 | |
| 15 | 61 31 1 459 677 | RELAY - SCHLIEßER | 1 | |
| 16 | 61 31 1 459 009 | TEMPERATURE SWITCH | 1 | |
| 17 | 61 31 1 459 003 | BULB TESTING DEVICE | 1 | |
| 18 | 46 63 2 307 115 | GASKET - 180MM | 1 |
