K75C (K569) | Electrical System

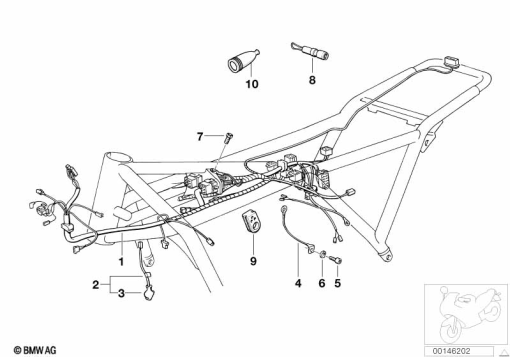

CHASSIS WIRING HARNESS
Diagram #61_2725 | 15 parts | 3 available in shop
100%
Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 11 1 459 253 | CHASSIS WIRING HARNESS (to 07/93) | 1 | |
| 2 | 61 12 1 459 120 | WIRING OIL PRESSURE | 1 | |
| 3 | 61 13 1 363 318 | PROTECTION CAP | 1 | |
| 4 | 61 12 1 244 577 | BATTERY CABLE NEGATIVE | 1 | |
| 5 | 07 11 9 920 148 | FILLISTER-HEAD SCREW - M6X12-8.8-ZNS | 1 | |
| 6 | 07 11 9 904 496 | WAVE WASHER - B6-ZNS3 | 1 | |
| 6 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | 1 | |
| 6 | 07 11 9 932 0701 | SS 6MM WASHER | 1 | |
| 6 | 07 11 9 932 073 | BLACK SPRING WASHER | 1 | |
| 6 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | 1 | |
| 7 | 07 11 9 915 021 | HEX BOLT WITH WASHER - M6X16-Z3-2 | 1 | |
| 7 | 07 11 9 915 033 | HEX BOLT WITH WASHER - M6X12-Z3-1 | 1 | |
| 8 | 61 13 1 459 504 | CONTACT RING | 1 | |
| 9 | 61 13 1 459 066 | CABLE GROMMET | 1 | |
| 10 | 61 13 1 459 048 | PROTECTION CAP | 1 |
