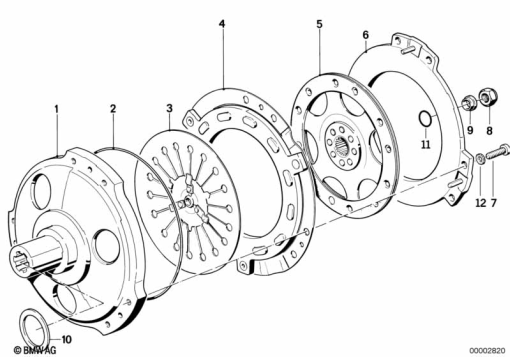

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 21 21 1 454 169 | CLUTCH HOUSING - ELBE | - | |
| 2 | 21 21 1 242 358 | RING - D=3MM | - | |
| 3 | 21 21 1 454 784 | DIAPHRAGM SPRING | - | |
| 4 | 21 21 1 457 458 | PRESSURE PLATE | - | |
| 5 | 21 21 1 464 796 | CLUTCH PLATE | - | |
| 6 | 21 21 1 457 280 | HOUSING COVER | - | |
| 7 | 21 21 1 454 417 | FILLISTER-HEAD SCREW - M7X25-8.8 | - | |
| 8 | 11 21 1 460 673 | HEX NUT - M20X1,5 | - | |
| 9 | 11 21 1 460 696 | COMPRESSION RING | - | |
| 11 | 11 21 1 460 467 | O-RING - 19X4 | - | |
| 12 | 21 21 1 242 377 | WASHER - A7,4 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
