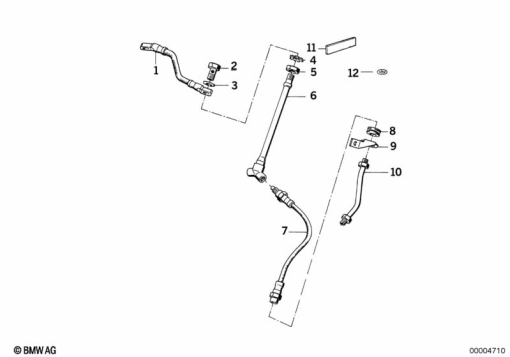

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 32 1 451 569 | BRAKE HOSE - L=165MM (to 09/91) | 1 | |
| 1 | 34 32 1 451 571 | BRAKE HOSE - L=249MM (to 09/91) | 1 | |
| 2 | 34 32 1 242 205 | HOLLOW BOLT | 1 | |
| 3 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | 1 | |
| 4 | 34 32 1 457 219 | TOOTHED RING (11/85 to 09/91) | 1 | |
| 5 | 34 32 1 451 766 | HEX NUT - M16X1,5 (to 11/85) | 1 | |
| 6 | 34 32 1 457 298 | DISTRIBUTION PIECE (to 11/85) | 1 | |
| 6 | 34 32 1 457 349 | DISTRIBUTION PIECE (11/85 to 09/91) | 1 | |
| 7 | 34 32 1 457 852 | BRAKE HOSE - L=360MM (to 09/91) | 1 | |
| 8 | 34 32 1 236 462 | GROMMET (to 08/91) | 1 | |
| 10 | 34 32 1 450 758 | BRAKE PIPE RIGHT (to 08/91) | 1 | |
| 11 | 46 63 1 453 980 | SEALING STRIP - 365X8X2MM (to 08/91) | 1 | |
| 12 | 11 41 1 460 403 | O-RING - 13,3X2,4 (to 09/91) | 1 |
