K1100LT (89V2) | Steering

RETROFIT KIT, HEATED HANDLE

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #32_0766 | 8 parts

100%

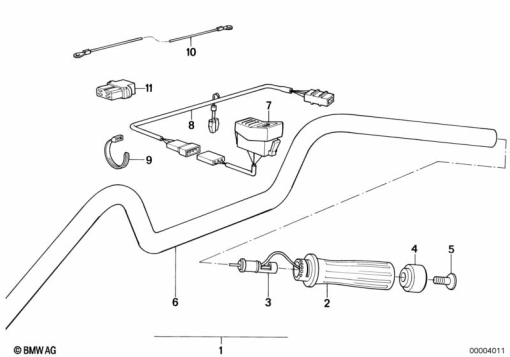

K1100LT (89V2) RETROFIT KIT, HEATED HANDLE exploded view parts diagram

Parts List (8)

#	Part Number	Description	Qty
1	61 31 2 316 372	SET: RETROFIT KIT, HEATED HANDLE	-
2	61 31 2 315 222	RIGHT GROOVED HANDLE	-
	61 31 7 694 813	LEFT GROOVED HANDLEAlternative for position 2	-
6	32 71 2 309 797	HANDLEBAR	-
7	61 31 1 459 234	SWITCH, HEATED HANDLEBAR GRIPS/HTD SEAT - L=700MM	-
8	61 12 1 459 263	WIRING HEATED HANDLES	-
9	61 13 1 377 134	CABLE TIE - L=292MM/B=4,8MM	-
11	61 13 1 361 706	PLUG HOUSING - 4-POLIG	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
