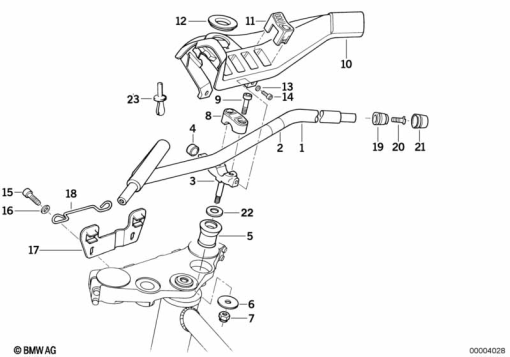

Parts List (26)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 71 2 309 795 | HANDLEBAR | - | |
| 2 | 32 71 2 309 354 | FOIL - L=67MM/B=25MM | - | |
| 3 | 32 71 2 307 361 | CLAMPING SUPPORT, BOTTOM | - | |
| 4 | 32 71 2 307 356 | HOSE | - | |
| 5 | 32 71 2 309 419 | SUSPENSION | - | |
| 6 | 32 71 1 451 683 | SHIM | - | |
| 7 | 07 12 9 904 002 | SELF-LOCKING HEX NUT - M8-8-ZNS3 | - | |
| 8 | 31 42 1 458 055 | CLAMP SUPPORT, BLACK, UPPER | - | |
| 9 | 07 11 9 901 025 | FILLISTER-HEAD SCREW - M8X30-8.8-ZNS | - | |
| 10 | 32 71 2 309 828 | COVER | - | |
32 71 2 316 261 | COVERING RADIO REMOTE CONTROLLEDAlternative for position 10 | - | ||
32 71 2 325 457 | COVER IN "FJORDGRAY"Alternative for position 10 | - | ||
32 71 2 325 564 | COVER, RADIO REMOTE CONTROL, "FJORDGRAY"Alternative for position 10 | - | ||
| 11 | 32 71 1 459 318 | COVERING CAP | - | |
| 12 | 32 71 2 309 287 | STEP PLATE | - | |
| 13 | 07 11 9 904 427 | WASHER - 6-200 | - | |
| 14 | 32 71 2 308 643 | FILLISTER-HEAD SCREW | - | |
| 15 | 07 11 9 915 602 | HEX BOLT - M6X20 | - | |
| 16 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 17 | 31 42 2 325 373 | SUPPORT PLATE | - | |
| 18 | 32 73 2 311 353 | HOLDER | - | |
| 19 | 32 71 2 307 451 | VIBRATION DAMPER | - | |
| 20 | 07 11 9 900 138 | COUNTERSUNK HEAD SCREW - M8X25-8.8 | - | |
| 21 | 32 71 2 307 452 | COVERING CAP | - | |
| 22 | 32 71 2 307 635 | WASHER - 27 | - | |
| 23 | 46 63 1 241 162 | EXPANDING RIVET | - |
