K1100LT (89V2) | Steering

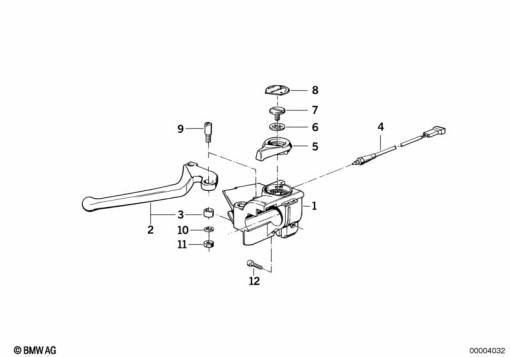

HANDLE UNIT LEFT/SINGLE PARTS
Diagram #32_0787 | 12 parts | 3 available in shop
100%
Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 72 1 457 963 | HOUSING | 1 | |
| 2 | 32 71 2 332 661 | HAND LEVER, POLISHED, LEFT | 1 | |
| 2 | 32 72 1 451 700 | HAND LEVER, BLACK, LEFT | 1 | |
| 3 | 32 72 1 451 796 | BUSH | 1 | |
| 4 | 61 31 1 459 569 | SWITCH | 1 | |
| 5 | 32 72 1 240 792 | LEVER FOR CHOKE | 1 | |
| 6 | 32 72 1 240 791 | WASHER - 1,200MM | 1 | |
| 7 | 07 11 9 907 430 | SAUCER-HEAD SCREW - M6X12 | 1 | |
| 8 | 32 72 1 451 975 | 32 72 1 451 975 | 1 | |
| 9 | 32 72 1 451 749 | SCREW - M6 | 1 | |
| 10 | 32 72 1 230 871 | WAVE WASHER | 1 | |
| 11 | 32 72 8 532 969 | NUT, SELF-LOCKING - M6 | 1 |
