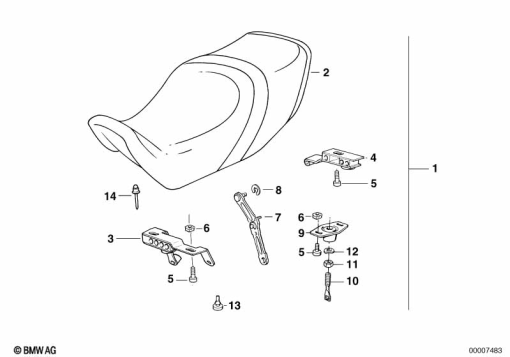

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52 53 2 307 660 | SADDLE DUAL SEAT - SATTELBROWN | - | |
52 53 2 324 469 | SADDLE DUAL SEAT - BLACK/800MMAlternative for position 1 | - | ||
| 3 | 52 53 2 307 568 | HINGE | - | |
| 4 | 52 53 2 307 572 | HINGE | - | |
| 5 | 46 51 2 311 713 | FILLISTER HEAD WITH WASHER - M6X16 | - | |
| 6 | 07 12 9 926 512 | CAGE NUT - M6 | - | |
| 7 | 52 53 1 451 650 | SUPPORT | - | |
| 8 | 07 12 9 934 319 | CLAMPING PLATE - D=6MM | - | |
| 9 | 52 53 1 451 209 | RUBBER MOUNTING | - | |
| 10 | 52 53 1 451 212 | CATCH | - | |
| 11 | 07 11 9 905 515 | HEX NUT - M8-8-ZNNIV SI | - | |
| 12 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | - | |
| 13 | 52 53 2 307 579 | BUMP STOP | - | |
| 14 | 07 12 9 948 781 | RIVET - 4,8-4A | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
