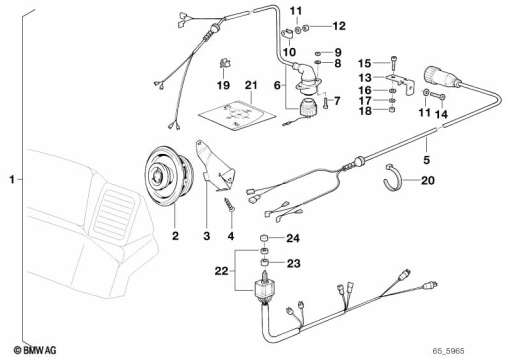

Parts List (27)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 65 13 2 316 383 | SET: RETROFIT KIT, LOUDSPEAKER, REAR | - | |
| - | 46 54 2 316 382 | SET: BACKREST MODIFICATION SET - BLACK | - | |
| 2 | 65 13 2 325 462 | LOUDSPEAKER - 4 OHM 20/30 W | - | |
65 13 2 325 463 | SPACERAlternative for position 2 | - | ||
| 3 | 65 13 2 316 459 | BRACKET LEFT | - | |
65 13 2 316 460 | BRACKET RIGHTAlternative for position 3 | - | ||
| 4 | 07 11 9 907 948 | FILLISTER HEAD SELF-TAPPING SCREW - ST4,2X16-Z2 | - | |
| 5 | 61 12 2 316 468 | SET: RADIO/TOP CASE LOUDSPEAKER WIRING SET | - | |
| 6 | 61 12 2 316 467 | SET: TOP CASE LOUDSPEAKER WIRING SET | - | |
| 7 | 07 11 9 906 451 | FILLISTER HEAD SCREW - M3X16-Z4 | - | |
| 8 | 07 11 9 931 015 | WASHER - A3,2 | - | |
| 9 | 07 11 9 905 236 | HEX NUT - M3-8-ZNNIV SI | - | |
| 10 | 61 66 8 351 770 | CLAMP | - | |
| 11 | 07 11 9 904 206 | WASHER - 10X5,3X1-200 HV | - | |
| 12 | 07 11 9 900 327 | CAP NUT - M5 | - | |
| 13 | 65 13 2 316 469 | HOLDER | - | |
| 14 | 46 62 2 313 516 | COUNTERSUNK HEAD SCREW - M5X16-4.8-SW | - | |
| 15 | 07 12 9 901 130 | ISA SCREW - M6X20-8.8-ZNNIV | - | |
| 16 | 46 63 2 316 418 | WASHER - 6,4 SW | - | |
| 17 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | - | |
| 18 | 07 11 9 921 054 | HEX NUT - M6-04-2-ZN | - | |
| 19 | 07 14 7 566 122 | FIXING CLAMP - A=4,0 - 4,5MM | - | |
| 20 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - | |
| 21 | 46 54 2 316 476 | SET: TEMPLATE | - | |
| 22 | 61 12 2 316 471 | FADING CONTROL | - | |
| 23 | 65 14 2 316 672 | BUSH | - | |
| 24 | 65 13 2 316 474 | ROTARY KNOB | - |
