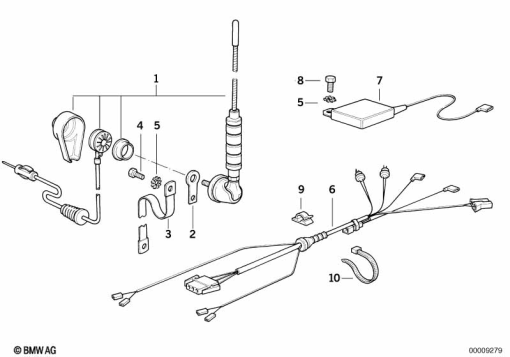

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 65 21 2 303 549 | ANTENNA | - | |
65 21 7 728 901 | ANTENNA - ASKAlternative for position 1 | - | ||
65 21 8 529 458 | ANTENNA ADAPTER TUBING - BENSI-ASKAlternative for position 1 | - | ||
65 21 2 325 382 | ANTENNA BASEAlternative for position 1 | - | ||
| 2 | 65 21 2 316 205 | BRACKET EARTH CABLE | - | |
| 3 | 65 21 2 303 291 | EARTH STRAP | - | |
| 4 | 07 11 9 904 359 | HEX BOLT - M5X10-8.8-ZNNIV | - | |
| 5 | 07 11 9 936 108 | TOOTH WASHER - A5,1 | - | |
| 6 | 61 12 2 315 690 | WIRING HARNESS, RADIO | - | |
| 7 | 12 31 1 356 564 | SUPPRESSION CAPACITOR ALTERNATOR - BOSCH | - | |
| 8 | 07 11 9 913 212 | HEX BOLT - M5X8 | - | |
| 9 | 61 13 1 361 243 | TUBING SUPPORT | - | |
| 10 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - | |
61 13 1 377 134 | CABLE TIE - L=292MM/B=4,8MMAlternative for position 10 | - |
