K1100LT (89V2) | Navigation & Alarm

RADIO INSTALLING KIT/LOUDSPEAKER

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #65_0336 | 5 parts

100%

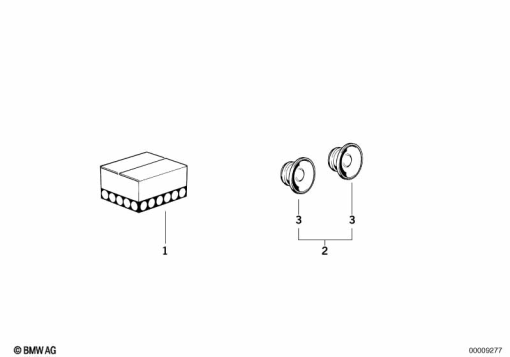

K1100LT (89V2) RADIO INSTALLING KIT/LOUDSPEAKER exploded view parts diagram

Parts List (5)

#	Part Number	Description	Qty
1	65 14 2 316 164	SET: RADIO INSTALLING KIT	-
	65 13 2 315 573	SET: LOUDSPEAKER - 4 OHM 15/25WAlternative for position 1	-
	65 13 2 325 462	LOUDSPEAKER - 4 OHM 20/30 WAlternative for position 1	-
3	65 13 2 303 232	LOUDSPEAKER - 4 OHM/ 15W/25W	-
	65 13 2 325 462	LOUDSPEAKER - 4 OHM 20/30 WAlternative for position 3	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
