K1100LT (89V2) | Instruments Dash

DASHBOARD SUPPORT

Diagram #62_0242 | 8 parts

100%

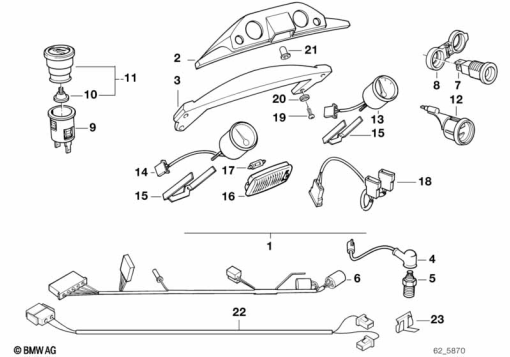

K1100LT (89V2) DASHBOARD SUPPORT exploded view parts diagram

Parts List (8)

#Part NumberDescriptionQty
6
61 12 1 459 768
WIRING ADDITIONAL INSTRUMENTS-
9
61 34 2 305 174
CIGARETTE LIGHTER SOCKET-
11
61 34 1 375 967
LIGHTER ELEMENT-
12
61 34 2 305 173
CLAMPING BUSH-
16
63 31 1 376 046
INTERIOR LIGHT-
17
63 31 1 374 798
BULB - 5W-
22
61 12 2 305 314
WIRING READING LAMP-
23
61 13 2 305 315
CLAMP-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
