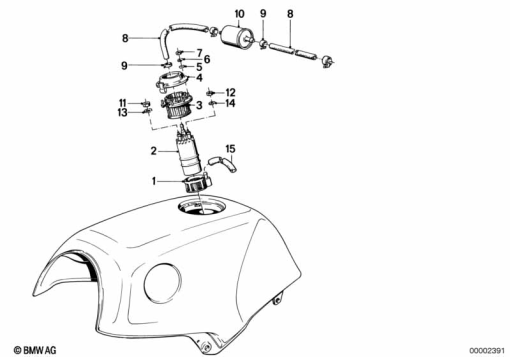

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 12 1 455 126 | FUEL FILTER (to 01/93) | - | |
| 2 | 16 12 1 461 576 | FUEL PUMP (to 01/93) | - | |
16 12 1 461 576N | FUEL PUMP NORIS 520, K75-K1100LAlternative for position 2 | - | ||
| 3 | 16 12 1 464 628 | VIBRATION DAMPER (to 01/93) | - | |
| 4 | 16 12 1 464 629 | SUPPORTING RING (to 01/93) | - | |
| 5 | 16 12 1 453 214 | WASHER | - | |
| 7 | 07 12 9 904 475 | HEX NUT - M5-8-ZNNIV SI | - | |
| 8 | 16 12 1 180 040 | FUEL HOSE - 8X13 (meter) | - | |
| 9 | 13 31 1 460 928 | HOSE CLAMP - D=13 | - | |
17 12 1 461 500 | HOSE CLAMP - D=12MM - 13,5MMAlternative for position 9 | - | ||
| 10 | 16 14 2 325 859 | FUEL FILTER | - | |
| 11 | 07 11 9 905 729 | HEX NUT - M5-8-ZNNIV SI | - | |
07 11 9 905 729 | HEX NUTAlternative for position 11 | - | ||
07 11 9 922 035 | HEX NUTAlternative for position 11 | - | ||
07 11 9 922 036 | HEX NUTAlternative for position 11 | - | ||
| 12 | 07 11 9 922 854 | HEX NUT - M4-A2-70 | - | |
| 13 | 07 11 9 933 060 | SPRING WASHER - B5 | - | |
| 14 | 07 11 9 933 034 | SPRING WASHER - B4 | - | |
| 15 | 16 13 1 455 350 | HOSE - 1000MM (meter) | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
