Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 4 | 31 42 2 310 352 | O-RING - 31.34X3.53 | - | |
| 7 | 31 42 2 312 031 | SCREW PLUG - M12X1,5 | - | |
| 8 | 07 11 9 963 130 | GASKET RING - A12X15,5 AL | - | |
| 9 | 31 42 2 312 064 | SPRING RETAINER | - | |
| 10 | 31 42 2 312 062 | SHIM | - | |
| 11 | 31 42 2 312 159 | CLAMPING | - | |
| 12 | 31 42 2 312 063 | SHIM | - | |
| 13 | 31 42 2 312 919 | LOCK RING | - | |
| 14 | 31 42 2 312 308 | SPACER TUBE | - |

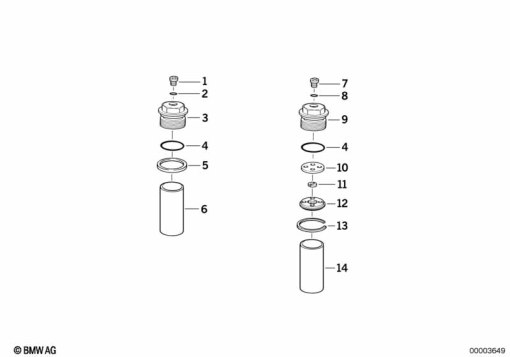

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
