K1100LT (89V2) | Exhaust System

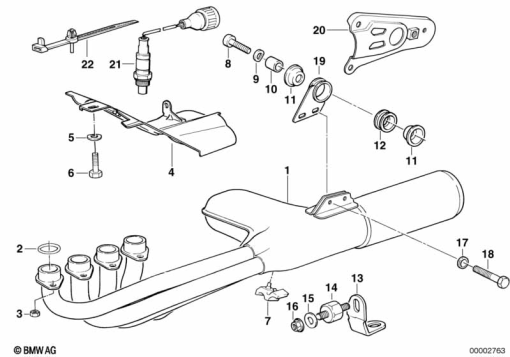

EXHAUST SYSTEM
Diagram #18_0280 | 25 parts | 4 available in shop
100%
Parts List (25)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18 12 1 464 609 | MUFFLER | 1 | |
| 1 | 18 32 1 464 582 | MUFFLER, CATALYTIC CONVERTER | 1 | |
| 2 | 11 62 7 662 083 | GASKET RING - C32X40 | 1 | |
| 3 | 11 62 1 744 323 | HEX NUT - M8 SW12 | 1 | |
| 4 | 18 22 1 464 028 | PROTECTION PLATE | 1 | |
| 5 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | 1 | |
| 6 | 18 22 1 464 043 | FILLISTER-HEAD SCREW - M6X20 | 1 | |
| 7 | 18 12 1 451 996 | ABSORBER | 1 | |
| 8 | 07 11 9 901 049 | FILLISTER-HEAD SCREW - M10X30-8.8-ZNS | 1 | |
| 9 | 07 11 9 904 463 | WAVE WASHER - B10-ZNS3 | 1 | |
| 10 | 18 21 1 340 598 | SPACER TUBE - 13,5MM | 1 | |
| 11 | 18 21 1 461 923 | WASHER | 1 | |
| 12 | 18 21 1 461 922 | GROMMET | 1 | |
| 13 | 18 21 1 464 437 | SUPPORT | 1 | |
| 14 | 18 12 1 464 754 | ABSORBER | 1 | |
| 15 | 18 21 1 464 213 | INSULATING WASHER | 1 | |
| 16 | 18 21 1 464 095 | NUT - M8 | 1 | |
| 17 | 07 11 9 931 050 | WASHER - 6,4 | 1 | |
| 18 | 07 11 9 913 977 | HEX BOLT - M6X16-A2 | 1 | |
| 19 | 18 12 1 464 464 | HOLDER | 1 | |
| 20 | 18 21 2 311 512 | HOLDER (to 08/92) | 1 | |
| 20 | 18 21 2 312 988 | BRACKET LEFT (08/92 to 07/93) | 1 | |
| 20 | 18 21 2 332 042 | BRACKET LEFT (from 07/93) | 1 | |
| 21 | 11 78 1 464 492 | OXYGEN SENSOR | 1 | |
| 22 | 61 13 6 924 664 | CABLE STRAP WITH BRACKET - Ø=7,7 / L=200 | 1 |
