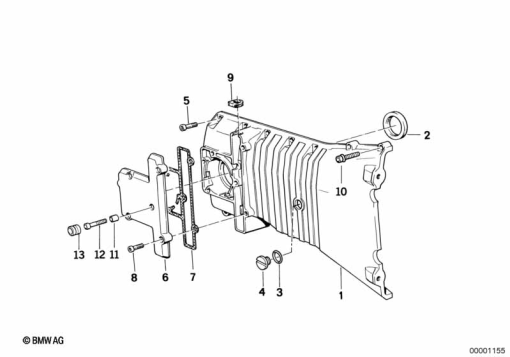

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 14 1 464 506 | BLACK TIMING CASE COVER | - | |
| 2 | 11 14 7 654 531 | SHAFT SEAL - 36X52X7 | - | |
| 3 | 07 11 9 963 342 | GASKET RING - A20X24-CU | - | |
| 4 | 11 14 1 461 423 | SCREW PLUG - M20X1,5 | - | |
| 5 | 11 14 1 460 678 | FILLISTER-HEAD SCREW - M6X25 | - | |
| 6 | 11 14 1 461 129 | COVER BLACK | - | |
| 7 | 11 14 1 460 307 | GASKET | - | |
| 8 | 11 13 1 460 677 | MULTI-PURPOSE BOLT - M6X20-Z3-ZNS | - | |
| 9 | 61 13 1 459 072 | GROMMET | - | |
| 10 | 07 11 9 906 058 | FILLISTER HEAD WITH WASHER - M6X35-ZNNIV SI | - | |
| 11 | 46 71 2 310 701 | SPACER BUSH | - | |
| 12 | 07 12 9 905 386 | ISA SCREW - M6X30-8.8-ZNNIV | - | |
| 13 | 31 42 1 235 615 | RUBBER GROMMET | - |
