K1100LT (89V2) | Engine

OUTPUT SHAFT

Diagram #11_1769 | 23 parts

100%

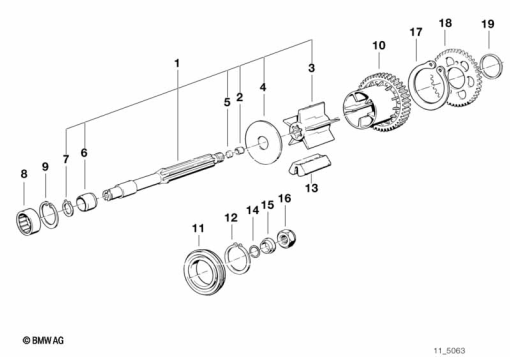

K1100LT (89V2) OUTPUT SHAFT exploded view parts diagram

Parts List (23)

#Part NumberDescriptionQty
1
11 21 1 461 785
OUTPUT SHAFT-
2
11 21 1 461 539
BUSH - 6X12X12-
3
11 21 1 460 883
ABSORBER-
4
11 21 1 460 356
BRACKET-
6
11 21 1 460 370
INNER BEARING RING - 22X26X2,0-
7
11 21 1 460 373
SNAP RING - D=22MM-
8
11 21 1 460 376
NEEDLE BEARING - 26X34X16-
9
11 21 1 460 379
SNAP RING - D=34MM-
10
11 21 1 461 499
ABSORBER GEAR WHEEL-
11
11 21 1 465 278
GROOVED BALL BEARING - 50X80X16-
12
11 21 1 461 755
LOCK RING-
13
11 21 1 461 541
ABSORBER-
14
11 21 1 460 467
O-RING - 19X4-
15
11 21 1 460 696
COMPRESSION RING-
16
11 21 1 460 673
HEX NUT - M20X1,5-
17
11 21 1 464 519
SPRING-
18
11 21 1 461 498
IDLER-
19
11 21 1 461 787
SHIM - 1,0-
11 21 1 461 788
SHIM - 1,15Alternative for position 19-
11 21 1 465 216
SHIM - 1,25Alternative for position 19-
11 21 1 461 789
SHIM - 1,3Alternative for position 19-
11 21 1 465 217
SHIM - 1,35Alternative for position 19-
11 21 1 461 790
SHIM - 1,45Alternative for position 19-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
