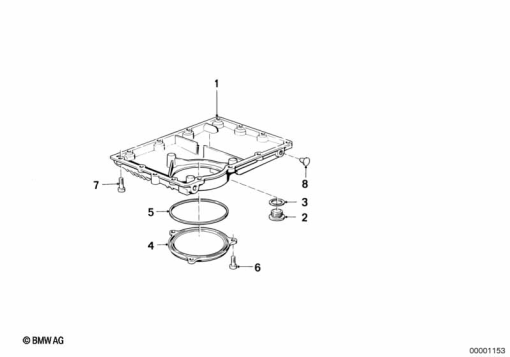

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 13 7 680 134 | OIL PAN | 1 | |
| 2 | 07 11 9 905 428 | SCREW PLUG - M18X1,5-ZNNIV | 1 | |
| 2 | 07 11 9 905 428M | DRAIN PLUG W/ MAGNET | 1 | |
| 3 | 07 11 9 963 300 | GASKET RING - A18X22-AL | 1 | |
| 4 | 11 13 1 460 229 | COVER | 1 | |
| 5 | 11 13 1 460 425 | O-RING - 88X3 | 1 | |
| 6 | 11 13 1 460 677 | MULTI-PURPOSE BOLT - M6X20-Z3-ZNS | 1 | |
| 7 | 11 14 1 460 678 | FILLISTER-HEAD SCREW - M6X25 | 1 | |
| 8 | 11 13 1 460 925 | BLIND PLUG | 1 |
