K1100LT (89V2) | Electrical System
PULSE GENERATOR, SPEEDOMETER

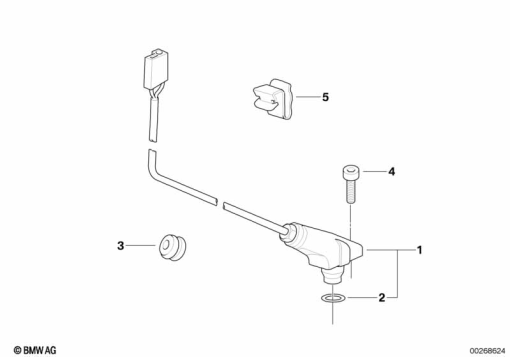

Diagram #61_2968 | 6 parts | 1 available in shop
100%
Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 31 2 305 839 | PULSE GENERATOR, SPEEDOMETER | 1 | |
| 1 | 61 31 1 354 400 | RUBBER GROMMET | 1 | |
| 2 | 61 31 1 459 030 | GASKET RING | 1 | |
| 3 | 61 31 1 354 400 | RUBBER GROMMET | 1 | |
| 4 | 07 11 9 919 906 | FILLISTER-HEAD SCREW - M5X16-Z4-8.8 | 1 | |
| 5 | 07 14 7 547 239 | FIXING CLAMP - A=3,5 - 6,0MM | 1 |
