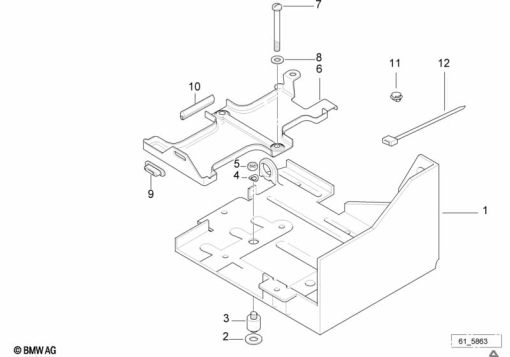

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 21 2 305 503 | BLACK BATTERY TRAY (from 07/93) | 1 | |
| 2 | 52 53 1 453 322 | SHIM (from 07/93) | 1 | |
| 3 | 34 52 2 312 621 | RUBBER MOUNTING (from 07/93) | 1 | |
| 4 | 07 11 9 932 0701 | SS 6MM WASHER | 1 | |
| 4 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN (from 07/93) | 1 | |
| 4 | 07 11 9 932 073 | BLACK SPRING WASHER | 1 | |
| 4 | 07 11 9 904 446 | WASHER - 5-200 HV-ZNNIV (from 07/93) | 1 | |
| 5 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI (from 07/93) | 1 | |
| 6 | 61 21 2 305 502 | BLACK BATTERY HOLD DOWN (from 07/93) | 1 | |
| 7 | 61 21 2 310 918 | SCREW - M6X185 (from 07/93) | 1 | |
| 8 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI (from 07/93) | 1 | |
| 9 | 61 21 2 305 034 | GROMMET (from 07/93) | 1 | |
| 10 | 64 31 1 392 808 | GASKET - 765MM (from 07/93) | 1 | |
| 11 | 61 13 8 353 536 | CABLE STRAP BRACKET (from 07/93) | 1 | |
| 12 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM (from 07/93) | 1 |
