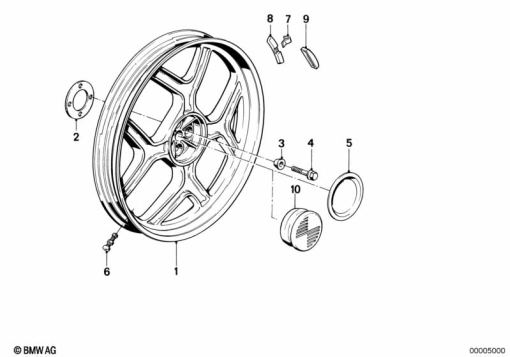

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 36 31 1 451 243 | CAST IRON RIM SILVER REAR - 2,75X17 | - | |
| 2 | 36 31 1 451 791 | SHIM - 2,000MM | - | |
| 3 | 36 13 2 302 339 | CONICAL RING | - | |
| 4 | 36 31 2 333 226 | WHEEL BOLT - M12X1,5X60 | - | |
| 5 | 36 13 1 451 758 | HUB CAP | - | |
| 6 | 36 32 1 452 748 | VALVE - D=8MM (to 06/86) | - | |
36 31 7 653 064 | VALVE - D=15MM (from 06/86)Alternative for position 6 | - | ||
| 7 | 36 31 1 451 792 | SPRING | - | |
| 8 | 36 31 1 242 944 | BALANCE WEIGHT - 10G | - | |
36 31 1 242 945 | BALANCE WEIGHT - 15GAlternative for position 8 | - | ||
36 31 1 242 946 | BALANCE WEIGHT - 20GAlternative for position 8 | - | ||
36 31 1 242 947 | BALANCE WEIGHT - 30GAlternative for position 8 | - | ||
36 31 1 242 948 | BALANCE WEIGHT - 25GAlternative for position 8 | - | ||
| 9 | 36 31 7 720 635 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 5G | - | |
36 31 7 720 636 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 10GAlternative for position 9 | - | ||
36 31 7 720 637 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 15GAlternative for position 9 | - | ||
36 31 7 720 638 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 20GAlternative for position 9 | - | ||
36 31 7 720 639 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 25GAlternative for position 9 | - | ||
36 31 7 720 640 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 30GAlternative for position 9 | - |
