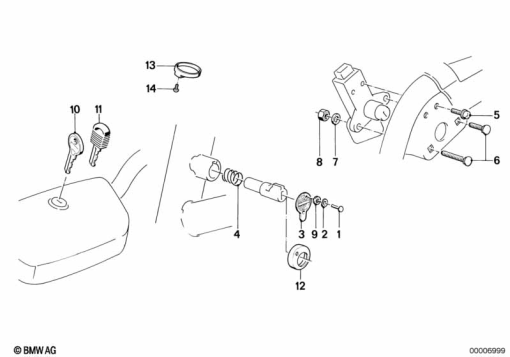

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51 25 1 242 647 | NOTCHED NAIL - 3X9 | - | |
| 2 | 07 11 9 932 009 | WAVE WASHER - A3 | - | |
| 3 | 51 25 1 453 158 | COVER | - | |
| 4 | 32 32 9 016 104 | COMPRESSION SPRING | - | |
| 5 | 51 25 1 453 383 | SCREW | - | |
| 6 | 07 11 9 910 417 | SAUCER-HEAD SCREW - M5X16 | - | |
07 11 9 910 418 | SAUCER-HEAD SCREW - M5X30Alternative for position 6 | - | ||
| 7 | 07 11 9 904 206 | WASHER - 10X5,3X1-200 HV | - | |
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 7 | - | ||
| 8 | 07 11 9 905 710 | HEX NUT - M5 | - | |
| 10 | 51 25 1 233 554 | 0.01 | - | |
51 25 1 233 898 | STANDARD KEY (CODE)Alternative for position 10 | - | ||
51 25 1 233 554S | REPLACEMENT KEY BLANKAlternative for position 10 | - | ||
| 11 | 51 25 1 453 645 | IGNITION KEY, FOLDING (CODE) | - | |
51 25 1 453 659 | 0.02Alternative for position 11 | - | ||
ELA53660 | FOLDING BLANK RECTANGLEAlternative for position 11 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
