K100 (K589) | Transmission

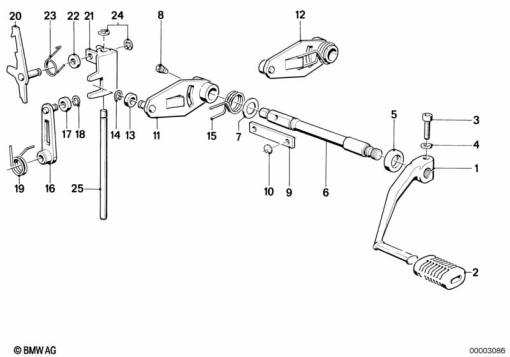

5-SPEED TRANSMISSION SHIFTING PARTS
Diagram #23_1158 | 27 parts | 8 available in shop
100%
Parts List (27)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 31 1 464 225 | SHIFT LEVER | 1 | |
| 2 | 23 31 1 451 767 | BUSHING | 1 | |
| 3 | 07 12 9 903 807 | ISA SCREW - M6X25-8.8-ZNS3 | 1 | |
| 4 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | 1 | |
| 4 | 07 11 9 932 0701 | SS 6MM WASHER | 1 | |
| 4 | 07 11 9 932 073 | BLACK SPRING WASHER | 1 | |
| 4 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | 1 | |
| 5 | 23 12 1 451 027 | SHAFT SEAL - 16X24X6,5 | 1 | |
| 6 | 23 31 1 451 089 | SELECTOR SHAFT | 1 | |
| 7 | 23 31 1 451 090 | SHIM | 1 | |
| 8 | 23 31 1 451 091 | SCREW | 1 | |
| 9 | 23 31 1 451 092 | STOPPER | 1 | |
| 10 | 07 11 9 932 831 | CIRCLIP - 5 | 1 | |
| 12 | 23 31 1 458 028 | LEVER | 1 | |
| 13 | 23 31 1 451 087 | ROLL PIN | 1 | |
| 14 | 07 11 9 934 035 | LOCK RING - 8X0,8 | 1 | |
| 15 | 23 31 1 451 088 | SPRING | 1 | |
| 16 | 23 31 1 458 029 | LEVER | 1 | |
| 17 | 23 31 1 451 087 | ROLL PIN | 1 | |
| 18 | 07 11 9 934 035 | LOCK RING - 8X0,8 | 1 | |
| 19 | 23 13 1 451 099 | SPRING | 1 | |
| 20 | 23 31 1 451 106 | PAWL | 1 | |
| 21 | 23 31 1 451 109 | SHIFT | 1 | |
| 22 | 23 31 1 451 110 | SHIM | 1 | |
| 23 | 23 31 1 451 111 | SPRING | 1 | |
| 24 | 07 11 9 932 841 | CIRCLIP - D=6MM | 1 | |
| 25 | 23 31 1 451 112 | 0.12 | 1 |
