K100 (K589) | Transmission

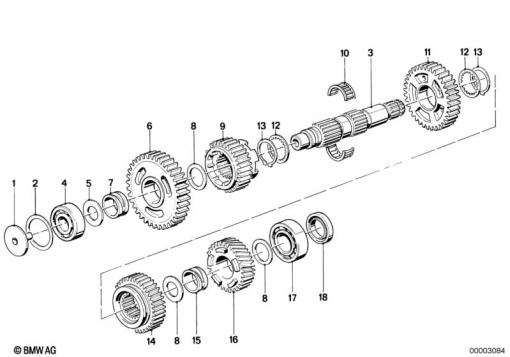

5 SPEED TRANSMISSION-OUTPUT SHAFT
Diagram #23_1156 | 29 parts | 8 available in shop
100%
Parts List (29)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 11 1 451 014 | OIL GUIDE | 1 | |
| 2 | 23 11 1 341 431 | SHIM - 37X47X0,35 | 1 | |
| 2 | 23 11 1 341 432 | SHIM - 37X47X0,45 | 1 | |
| 2 | 23 11 1 341 433 | SHIM - 37X47X0,55 | 1 | |
| 2 | 23 11 1 451 138 | SHIM - 37X47X0,30 | 1 | |
| 2 | 23 11 1 451 139 | SHIM - 37X47X0,40 | 1 | |
| 2 | 23 11 1 451 140 | SHIM - 37X47X0,50 | 1 | |
| 3 | 23 21 1 457 195 | OUTPUT SHAFT | 1 | |
| 4 | 23 12 1 451 080 | GROOVED BALL BEARING - 20X47X14 | 1 | |
| 4 | 23 12 1 451 080 | GROOVED BALL BEARING - 20X47X14 | 1 | |
| 5 | 23 21 1 451 145 | SHIM | 1 | |
| 6 | 23 21 1 451 079 | GEAR WHEEL 1ST GEAR | 1 | |
| 7 | 23 21 1 451 078 | BUSH | 1 | |
| 8 | 23 21 1 451 144 | SHIM - 25X35X2,0 | 1 | |
| 8 | 23 21 1 451 902 | SHIM - 25X35X1,9 | 1 | |
| 8 | 23 21 1 451 903 | SHIM - 25X35X1,8 | 1 | |
| 8 | 23 21 1 451 904 | SHIM - 25X35X1,7 | 1 | |
| 8 | 23 21 1 451 905 | SHIM - 25X35X1,6 | 1 | |
| 9 | 23 21 1 451 077 | GEAR WHEEL 4TH GEAR | 1 | |
| 10 | 23 31 1 451 898 | NEEDLE CAGE - 27X33X17 | 1 | |
| 11 | 23 21 1 451 071 | GEAR WHEEL, 2ND GEAR | 1 | |
| 12 | 23 21 1 451 072 | WASHER | 1 | |
| 13 | 23 21 1 451 154 | LOCK RING - 31X1,5 | 1 | |
| 14 | 23 21 1 451 073 | GEAR WHEEL 3RD GEAR | 1 | |
| 15 | 23 21 1 451 074 | BUSH | 1 | |
| 16 | 23 21 1 451 075 | GEAR WHEEL 5TH GEAR - Z=30 | 1 | |
| 17 | 23 12 1 451 895 | GROOVED BALL BEARING - 6205 R C3 | 1 | |
| 18 | 23 12 1 451 024 | SHAFT SEAL - 25X40X7 | 1 | |
| 18 | 23 12 1 451 024VIT | VITON SEAL 25X40X7 OUTPUT SEAL | 1 |
