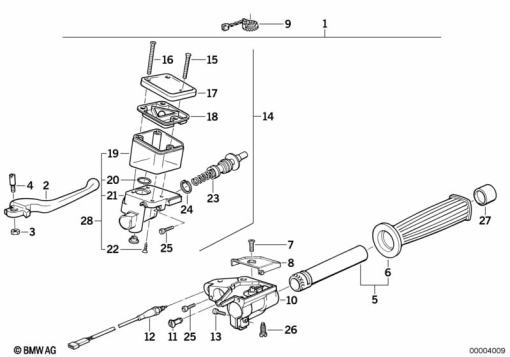

Parts List (26)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 72 2 310 742 | HANDLE UNIT, RIGHT - D=13MM | 1 | |
| 2 | 32 72 1 457 058 | HAND LEVER, BLACK, RIGHT | 1 | |
| 3 | 32 72 8 532 969 | NUT, SELF-LOCKING - M6 | 1 | |
| 4 | 32 72 1 451 749 | SCREW - M6 | 1 | |
| 5 | 32 72 1 451 732 | HANDLE | 1 | |
| 7 | 32 72 1 454 245 | COUNTERSUNK SCREW - M5X15-ZN-SW | 1 | |
| 8 | 32 72 1 457 037 | COVER | 1 | |
| 1 | 32 72 1 457 036 | CAM DISC - 36MM | 1 | |
| 9 | 32 72 1 457 036 | CAM DISC - 36MM | 1 | |
| 9 | 32 72 1 457 036 | CAM DISC - 36MM | 1 | |
| – | 32 72 1 457 037 | COVER | 1 | |
| 10 | 32 72 1 451 734 | HOUSING | 1 | |
| 11 | 32 72 1 451 622 | SUPPORT | 1 | |
| 12 | 61 31 1 459 569 | SWITCH | 1 | |
| 14 | 32 72 2 310 786 | CYLINDER WITH PISTON - D=13MM | 1 | |
| 15 | 07 11 9 928 128 | COUNTERSUNK HEAD SCREW - M5X45-4.8-ZN SW | 1 | |
| 16 | 07 11 9 928 129 | COUNTERSUNK SCREW BLACK - M5X55-4.8-ZN SW | 1 | |
| 17 | 32 72 1 454 944 | COVER | 1 | |
| 18 | 32 72 1 451 742 | RUBBER BOOT | 1 | |
| 19 | 32 72 1 451 746 | CONTAINER | 1 | |
| 20 | 32 72 1 242 624 | O-RING | 1 | |
| 22 | 32 72 1 242 625 | OVAL-HEAD SCREW - 4X12-WN1412-H | 1 | |
| 23 | 32 72 2 302 356 | PISTON - D=13MM | 1 | |
| 24 | 07 11 9 934 620 | LOCK RING - 17X1 | 1 | |
| 25 | 32 72 1 451 987 | FILLISTER-HEAD SCREW - M5X20-Z4-8.8-SW | 1 | |
| 26 | 32 72 1 454 414 | LOCKING BOLT | 1 |
