K100 (K589) | Rear Axle & Suspension

BEVEL GEAR AND SPACER RINGS

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

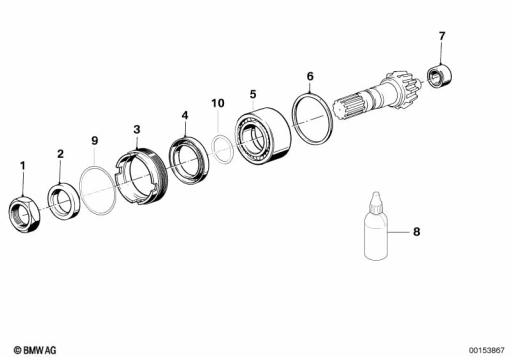

Diagram #33_1564 | 28 parts | 1 available in shop

100%

Parts List (28)

#	Part Number	Description	Qty
1	33 12 1 450 497	NUT - M24X1,5	1
2	33 11 7 701 691	COMPRESSION RING	1
3	33 11 2 333 120	THREADED RING - M65X1,5	1
4	33 11 7 665 838	SHAFT SEAL - 35X47X7	1
5	33 11 7 699 866	AX BEARING - 62X25X25,4	1
6	33 12 1 230 717	SHIM - 1,500MM	1
6	33 12 1 230 718	SHIM - 1,550MM	1
6	33 12 1 230 719	SHIM - 1,600MM	1
6	33 12 1 230 720	SHIM - 1,650MM	1
6	33 12 1 230 721	SHIM - 1,700MM	1
6	33 12 1 230 722	SHIM - 1,750MM	1
6	33 12 1 230 723	SHIM - 1,800MM	1
6	33 12 1 230 724	SHIM - 1,850MM	1
6	33 12 1 230 725	SHIM - 1,900MM	1
6	33 12 1 230 726	SHIM - 1,950MM	1
6	33 12 1 230 727	SHIM - 2,000MM	1
6	33 12 1 230 728	SHIM - 2,050MM	1
6	33 12 1 230 729	SHIM - 2,100MM	1
6	33 12 1 230 730	SHIM - 2,150MM	1
6	33 12 1 230 731	SHIM - 2,200MM	1
6	33 12 1 230 732	SHIM - 2,250MM	1
6	33 12 1 230 733	SHIM - 2,300MM	1
6	33 12 1 230 734	SHIM - 2,350MM	1
6	33 12 1 230 735	SHIM - 2,400MM	1
6	33 12 1 230 736	SHIM - 2,450MM	1
6	33 12 1 230 737	SHIM - 2,500MM	1
7	33 12 1 236 998	NEEDLE SLEEVE - 15X30X18	1
8	33 11 2 328 736	ADHESIVE LOCTITE 577 - 50ML	1
