K100 (K589) | Pedals
BRAKE PEDAL

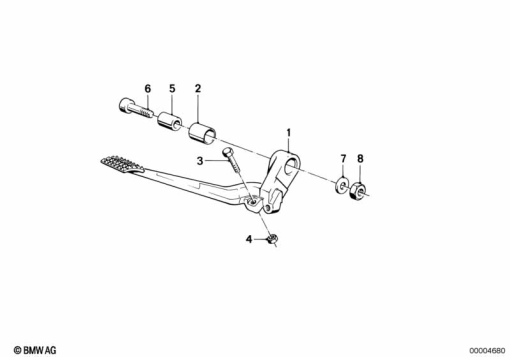

Diagram #35_0363 | 13 parts
100%
Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35 12 1 450 887 | BRAKE PEDAL | - | |
35 21 1 457 385 | BRAKE LEVER, BLACKAlternative for position 1 | - | ||
| 2 | 35 21 1 450 231 | BUSHING | - | |
| 3 | 07 11 9 913 589 | HEX BOLT - M6X25 | - | |
07 11 9 913 589 | HEX BOLT - M6X25Alternative for position 3 | - | ||
| 4 | 07 11 9 922 859 | HEX NUT - M-6-04-2-ZNS (to 12/96) | - | |
07 11 9 904 030 | HEX NUT - M6-8-ZNS3 (to 12/96)Alternative for position 4 | - | ||
07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SIAlternative for position 4 | - | ||
| 5 | 35 21 1 450 230 | BUSHING | - | |
| 6 | 07 12 9 905 166 | ISA SCREW - M10X45 | - | |
| 7 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | - | |
| - | 07 11 9 919 672 | FILLISTER-HEAD SCREW | - | |
| 8 | 07 12 9 964 672 | SELF-LOCKING HEX NUT - M10 | - |
