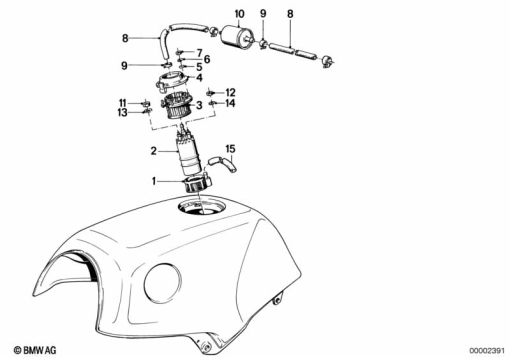

Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 12 1 455 126 | FUEL FILTER (from 05/85) | 1 | |
| 2 | 16 12 1 461 576 | FUEL PUMP | 1 | |
| 2 | 16 12 1 461 576N | FUEL PUMP NORIS 520, K75-K1100L | 1 | |
| 3 | 16 12 1 450 712 | VIBRATION DAMPER (to 05/85) | 1 | |
| 3 | 16 12 1 464 628 | VIBRATION DAMPER (from 05/85) | 1 | |
| 4 | 16 12 1 464 629 | SUPPORTING RING | 1 | |
| 5 | 16 12 1 453 214 | WASHER | 1 | |
| 7 | 07 12 9 904 475 | HEX NUT - M5-8-ZNNIV SI | 1 | |
| 8 | 16 12 1 180 040 | FUEL HOSE - 8X13 (meter) | 1 | |
| 9 | 13 31 1 460 928 | HOSE CLAMP - D=13 | 1 | |
| 9 | 17 12 1 461 500 | HOSE CLAMP - D=12MM - 13,5MM | 1 | |
| 10 | 16 14 2 325 859 | FUEL FILTER | 1 | |
| 11 | 07 11 9 905 729 | HEX NUT - M5-8-ZNNIV SI | 1 | |
| 11 | 07 11 9 905 729 | HEX NUT | 1 | |
| 11 | 07 11 9 922 035 | HEX NUT | 1 | |
| 11 | 07 11 9 922 036 | HEX NUT | 1 | |
| 12 | 07 11 9 922 854 | HEX NUT - M4-A2-70 | 1 | |
| 13 | 07 11 9 933 060 | SPRING WASHER - B5 | 1 | |
| 14 | 07 11 9 933 034 | SPRING WASHER - B4 | 1 | |
| 15 | 16 13 1 455 350 | HOSE - 1000MM (meter) | 1 |
